Introduction

Real-time Model Voltage Telemetry PRM-01, real-time model data feedback allows users to receive crucial information on the model's systems.

When paired with flight module PRM-01, model voltage is displayed.

Configurable sound/message/vibration alarms signal potential problems when low model voltage. A low model voltage alarm value can be customized.

Specifications

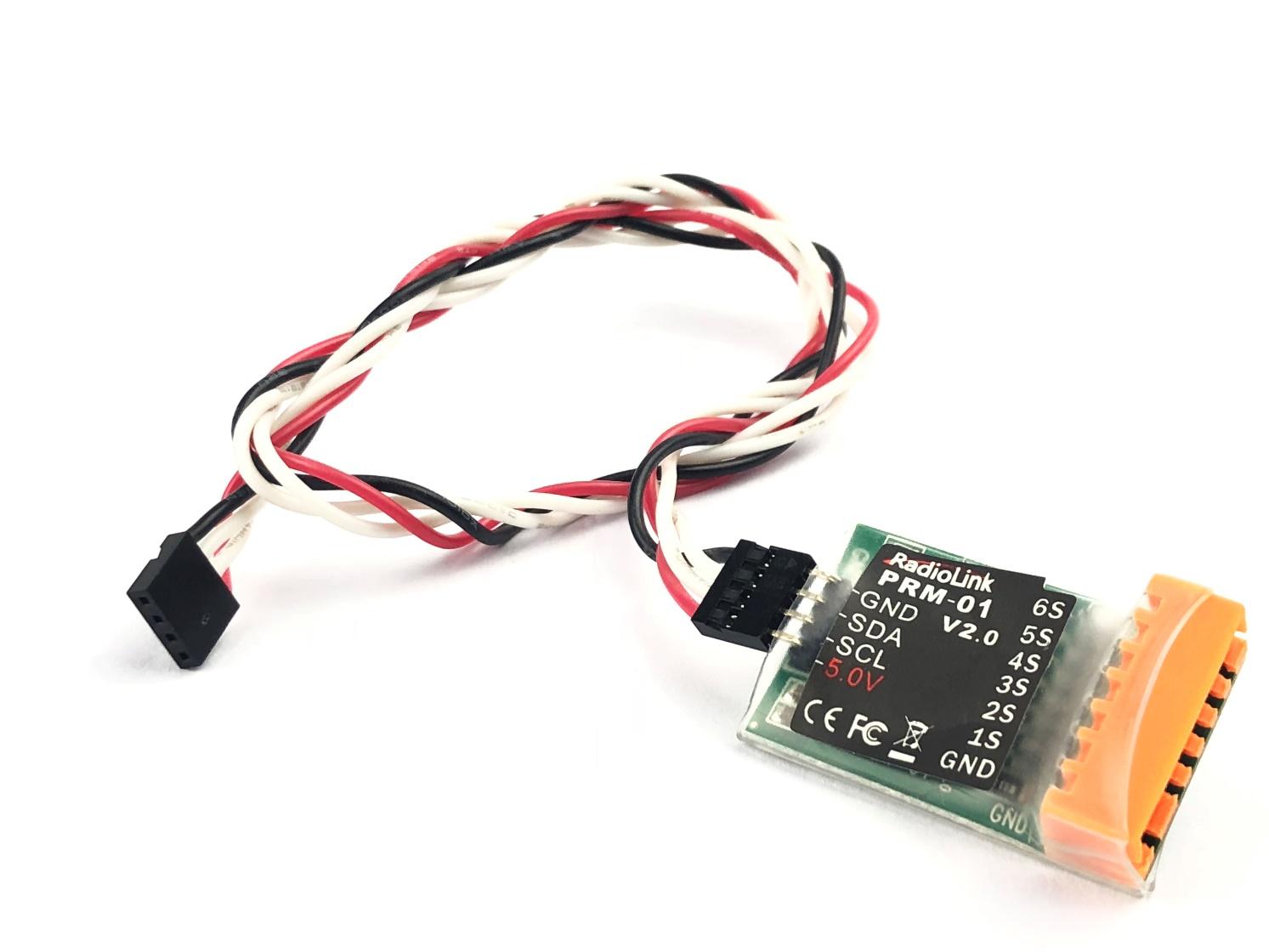

① Name: Real-time Model Voltage Telemetry Module

② Model: PRM-01

③ Dimensions: 33*22*11mm (1.3"*0.87"*0.43)

④ Weight (with wire): 7g (0.25oz)

⑤ Voltage Input Range: 1S~6S LiPo Battery

⑥ Compatible receiver: R12DS, R9DS (Old version receiver: R10DS, R10D, R9D)

⑦ Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9

⑧ Configurable sound/message/vibration alarms signal potential problems when low model voltage. A low model voltage alarm value can be customized.

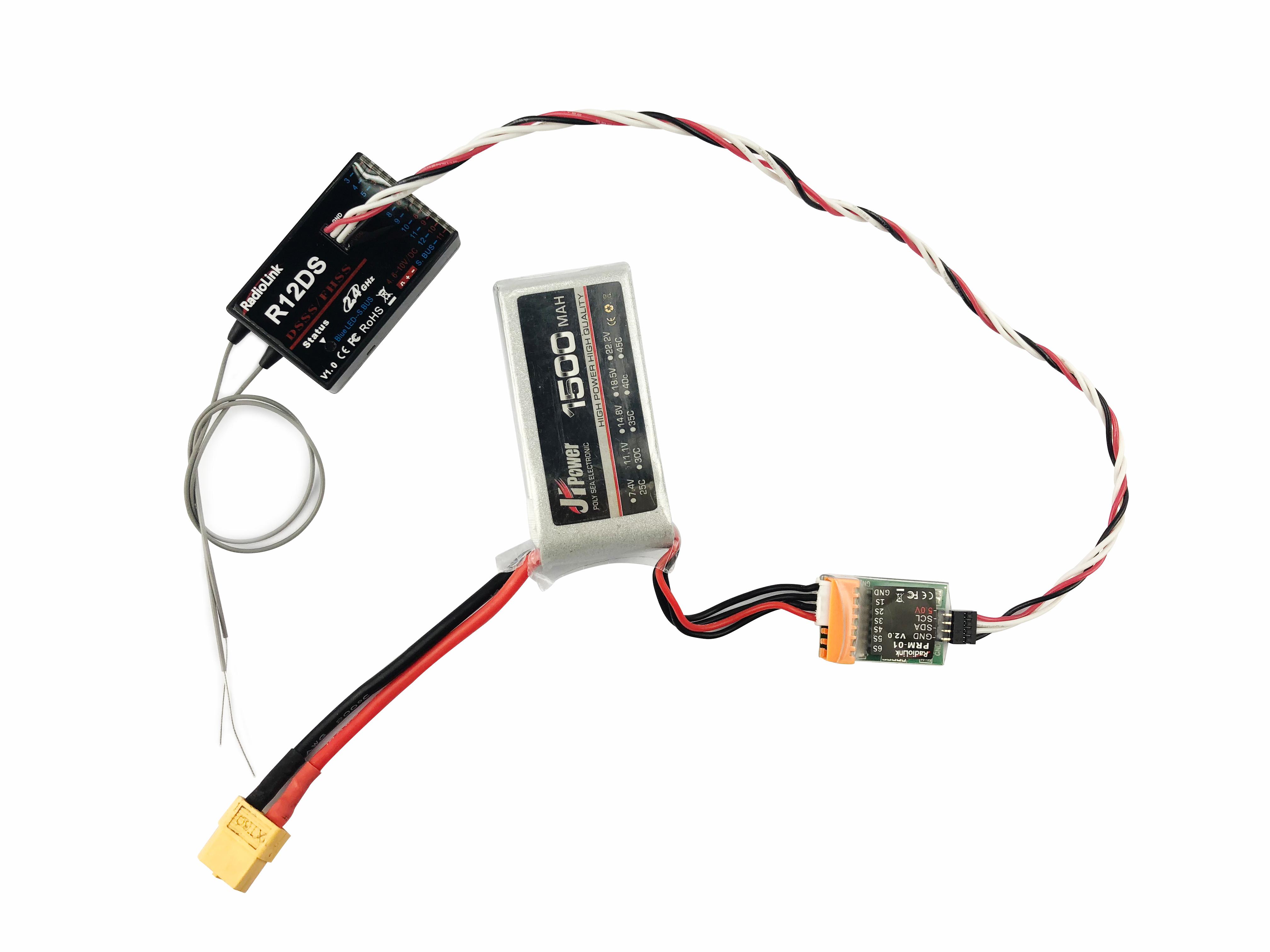

How to Connect

How to Setup

Only need to setup in the radio menu.

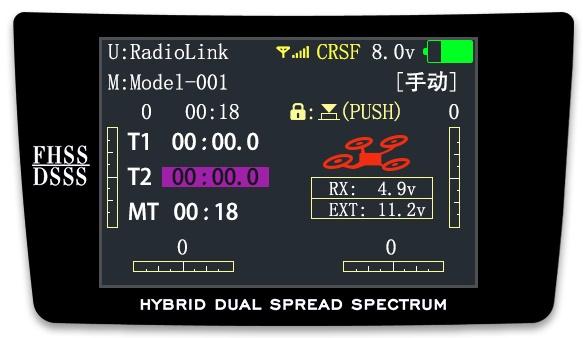

Press Mode button to the BASIC MENU, choose PARAMETER, press Push button to the PARAMETER menu, setup the EXT-ALARM voltage depends on your battery. When paired with flight module PRM-01, model voltage is displayed on the main menu of transmitter.

Attention

Note: Please power on all the equipment first, especially the plane. And then connect the PRM-01 to the receiver to protect the PRM-01 in case the instantaneous current is too much to burns the telemetry module.
