R6FG

(FHSS)

Radiolink R6FG, 2.4GHz 6 channels receiver, gyro integrated and HV servo supported.

Compatible with Radiolink 6 channels pistol grip radio RC6GS V2, RC6GS, 4 channels pistol grip radio RC4GS V2, RC4GS and 8 channels transmitter T8S, T8FB.



How to Match Code with Transmitter:

1. Put the transmitter and the receiver close to each other within 50 centimeters.

2. Turn on the transmitter, then power on the R6FG.

3. There is a black button on the R6FG, press the binding button in one second until the receiver light starts blinking and release, binding success when receiver signal LED always on.

Attention: R6FG default have not turn on the gyro function. Make sure the R6FG keep motionless when power on it, because the R6FG will do the self-test.

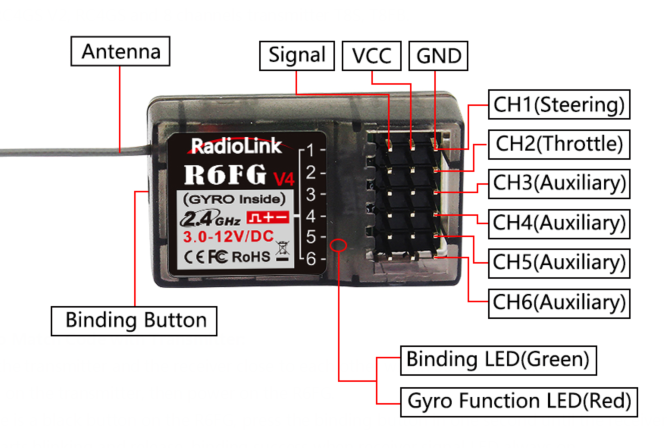

R6FG with two indicate LED, green LED on indicates normal working mode while both green and red LED on indicates gyro function working mode.


Working Mode

R6FG has two working modes：normal working mode and gyro function working mode.


Normal Working Mode

Green LED, gyro will not be working.

Gyro Function Working Mode

Both green and red LED on.

Receiver with gyro integrated to hold the vehicle in a straight line during aggressive acceleration and braking or get bumped around by rough terrain.

Receiver with gyro integrated to keep the unit-direction and anti-slip.


Gyro function setup

1. Enable Gyro

Press binding key three times (interval less than 1 second), the red LED will flash three times, indicating that gyro is enabled.

2. Gyro Reverse

Set the gyro forward, turn the car right or left to see whether gyro functions. The wheel will turn left when the car is turned right and the wheel turns right when the car is turned left. If the gyro acts counter, press the binding key twice, the RED LED flashes twice, the gyro reverse is corrected.


Gyro Sensitivity Setup

Gyro sensitivity is default to adjust by channel three (factory set VR switch), turning the VR switch clockwise to raise sensitivity and anti-clockwise to decrease. Gyro sensitivity can setup in menu (20: GYRO) if the VR switch have to use for other function setting.


Receiver Version Introduction

All of the R6FG product before R6FG V2 have to setup Gyro forward.R6FG V2.0 that have product before 3/29/2018 have to setup Gyro forward.R6FG V2.0 not only cancelled the Gyro enabled forward function that make gyro function enabled both forward and back, but also the gyro has added the software filtering algorithm and improve the PID algorithm that make the sensitivity more precision. New version R6FG improves the stability at the high gyro sensitivity mode that greatly improves the adaptability to RC car types and sites. New version R6FG can achieve professional-level performance even use on drift car.


Installment of receiver antenna：

  1. The antenna must be kept as straight as possible. Otherwise it will reduce the effective range.
  2. Large model aircraft may of some metal part interfering signal, in this case the antenna should be placed at side of the model.
  3. The antenna must be kept away from conductive materials, such as metal and carbon by at least a half inch. The coaxial part of the antenna does not need to follow these guidelines, but do not bend it in a small radius.
  4. Keep the antenna away from the motor, ESC, and other noise sources as much as possible.
  5. The receiver can be packed by sponge or foam for shocking proof when it is installed to the model.

After all of the above steps finished, now the program functions to assure it under control of transmitter with a right connection.


Specification

Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

Size: 35*20*13mm

Weight: 6g

Channel: 6 channels

Model: cars/boats

Modulation mode: GFSK

Spread spectrum: FHSS

Antenna length: 200mm

Control distance: more than 400 meters

Power supply: 4.8~10.0V DC

Channel resolution: 4096

Work current: 30mA

Compatible with transmitters: RC6GS V2, RC6GS, RC4GS V2, RC4GS, T8FB, T8S
