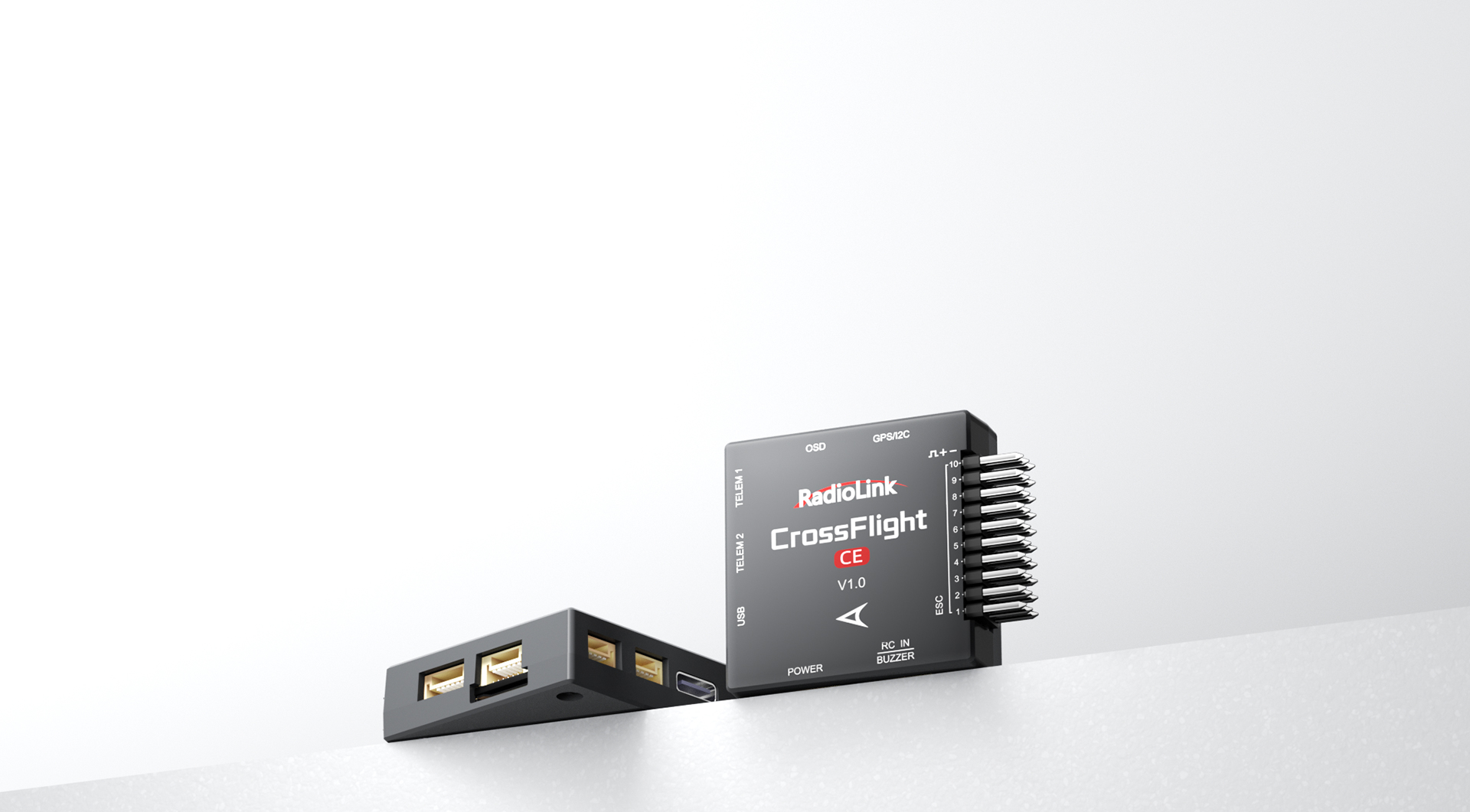

RadioLink CrossFlight-CE

Proprietary High-Dynamic Algorithm Achieves Superior Performance

Adaptable to Multirotor, Micro Racing Drone, Airplane, Helicopter, Car, Boat, Submarine, Radartracker

Vibration Damping by Software

Proprietary

High-Dynamic Algorithm

Performance Proven in

Extreme Applications

Automation Software

Testing System

Comprehensive Technical Support

Multiple-model Support

Multi-domain

Application Expansion

Cost-effective Solution

Performance Proven in Extreme Applications

The unique high dynamic algorithm flight controller, which combines Kalman filtering technology and inertial navigation algorithm, is widely used in high-speed autonomous drones, such as the documentary “Amazing Drone Race China” shot by Tencent in 2018, the movie “WU KONG” shoot by mobile phone Huawei P30 Pro in 2019 and the XPENG T1 prototype Flying car. In 2021, the control system designed for agricultural vehicles can execute programmed missions automatically and has achieved the ideal operational effect, solving the industry problem of agricultural vehicles pressing seedlings when changing lines.

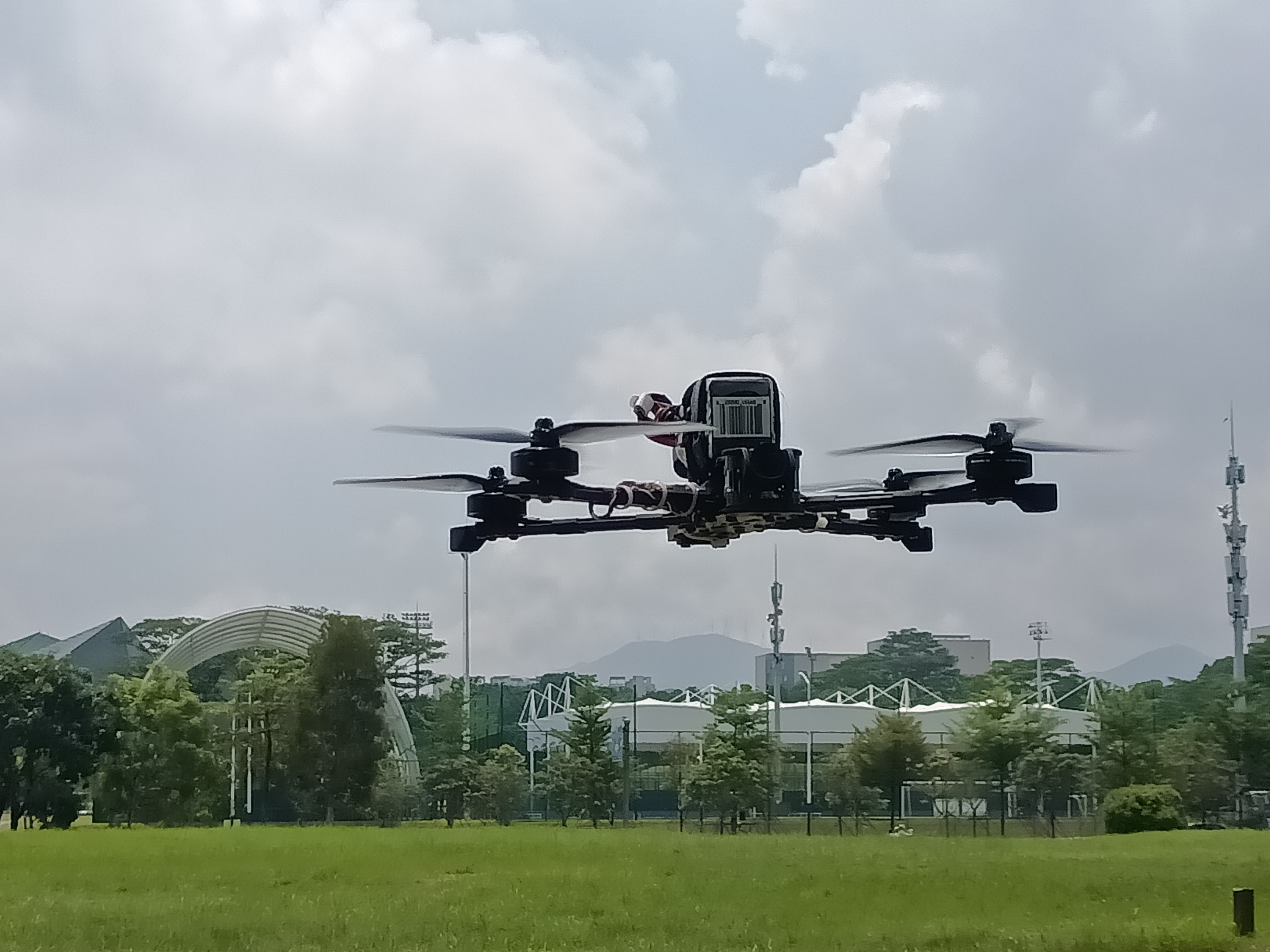

Autonomous Flight

Supports auto-path planning for search and rescue, material delivery, crop spraying; features one-touch return on signal loss or low voltage.

Instant Braking & Hover

A proprietary high-dynamic algorithm enables an instant stop at 180km/h in position-hold mode, delivering professional racing-grade handling for high-speed cinematography.

GeoFence

Geofence settings according to the drone management regulations promulgated by the country. It can fly within the prescribed flight airspace and fly law-abidingly.

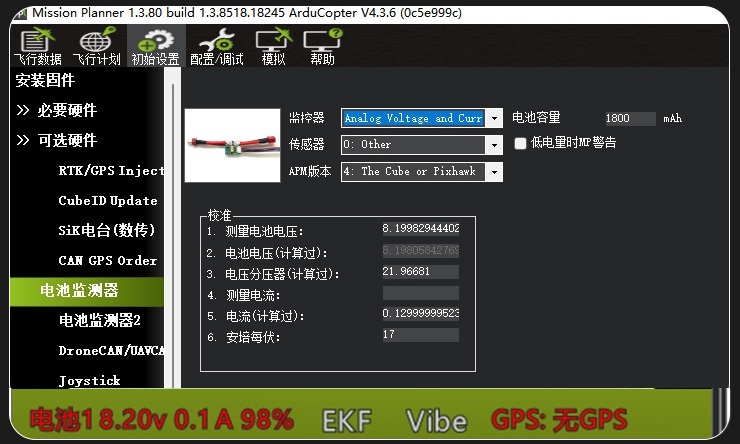

Battery Monitoring

Integrated battery monitoring enables real-time voltage of the aircraft tracking via FPV goggles, FPV screens, or Mission Planner, ensuring safe return with sufficient power reserve.

Log Analytics

Multi-dimensional visualization with full-chain data traceability for flight optimization.

OSD Module Integrated

The pilot can intuitively grasp the status and coordinates of the aircraft at any time during the first-view (FPV) flight of aircraft such as racing drones and long-distance fixed-wing aircraft.

Proprietary High-Dynamic Algorithm

22 years of industry accumulation, 10 years of research in the field of flight control systems, continuous independent research and development capabilities, developed by the same technical team behind the eVTOL Flying Car control system. Through algorithmic optimization, domestic sensors achieve comparable or superior performance to imported alternatives, ensuring stable supply while maintaining product excellence, redefining core UAV supply chains.

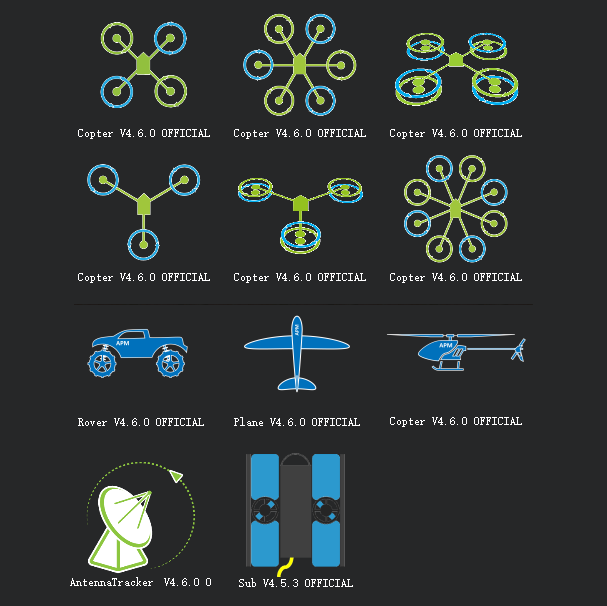

Universal Airframe Compatibility

Effortless Mastery for Any Craft

Adaptable to diverse platforms including VTOLs, 3-8 axis multirotors, helicopters, UAV logistics systems, unmanned delivery vehicles, baitboats, underwater robots, aerial swarms, surveying drones, agricultural sprayers, firefighting drones, water quality monitors, forest patrol UAVs, epidemic-control robots, firefighting robots, and youth training platforms (e.g., UAV vocational competitions).

Compatible with SBUS/PPM/CRSF signal protocols

10 PWM output channels supporting multi-craft configurations

Software Vibration Suppression

Optimal Positioning in Complex Flight Conditions

Featuring the same software vibration suppression algorithm as Mini Pix, this technology effectively filters high-frequency vibrations to ensure sensor data accuracy and superior damping performance. Delivers precise altitude hold and position lock even during high-speed aerobatic maneuvers. For helicopters equipped with CrossFlight-CE flight controller, it maintains exceptional tail-holding precision and stable flight, without requiring physical damping mounts.

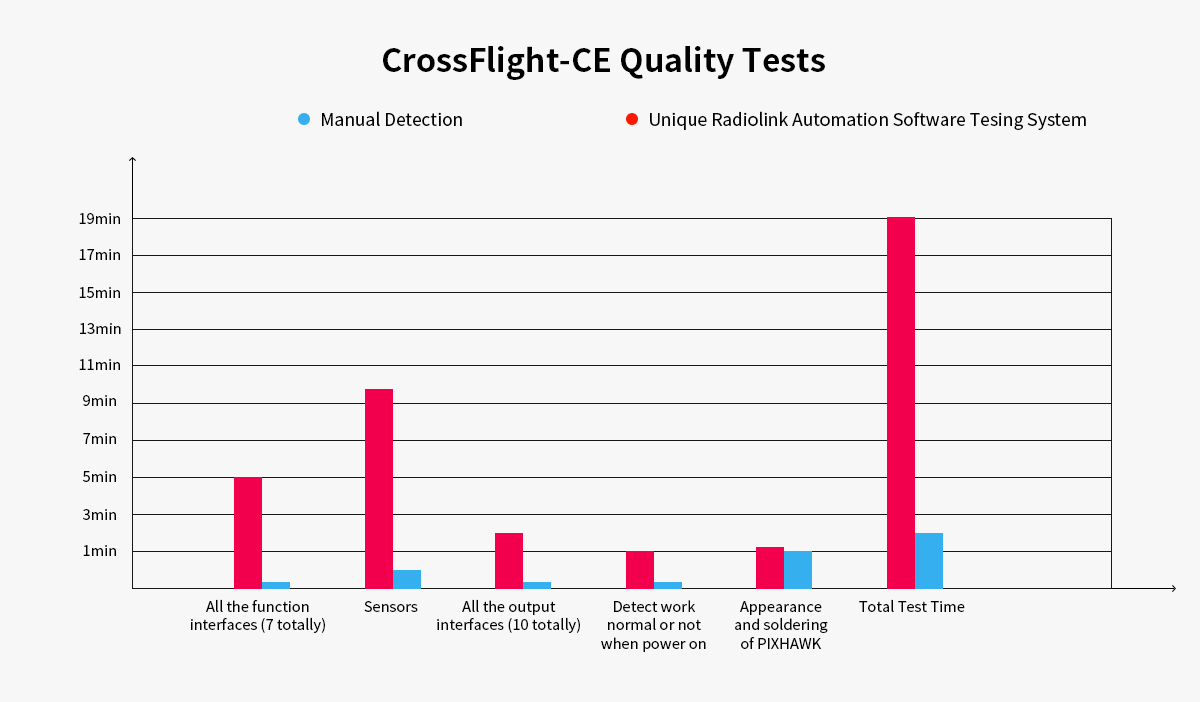

Automation Software Testing System

Comprehensive Quality Assurance

As the exclusive manufacturer of PIX Automation Software Testing System, which achieves end-to-end automation from sensors to connectivity ports, the testing efficiency and quality assurance significantly outperform traditional manual methods. Refined through a decade of market validation, the automated inspection system ensures consistent quality excellence for every unit.

Cost-Effective Solutions

Remote control system, flight control system, high anti-interference GPS, centimeter-level high-precision RTK positioning system, visual navigation system, and obstacle avoidance system, etc. With 22 years of research and development accumulation, RadioLink delivers comprehensive hardware and technical support—from core UAV electronics to industry-specific solutions—dedicated to addressing critical challenges in urban air mobility, smart farming, and diverse application fields.

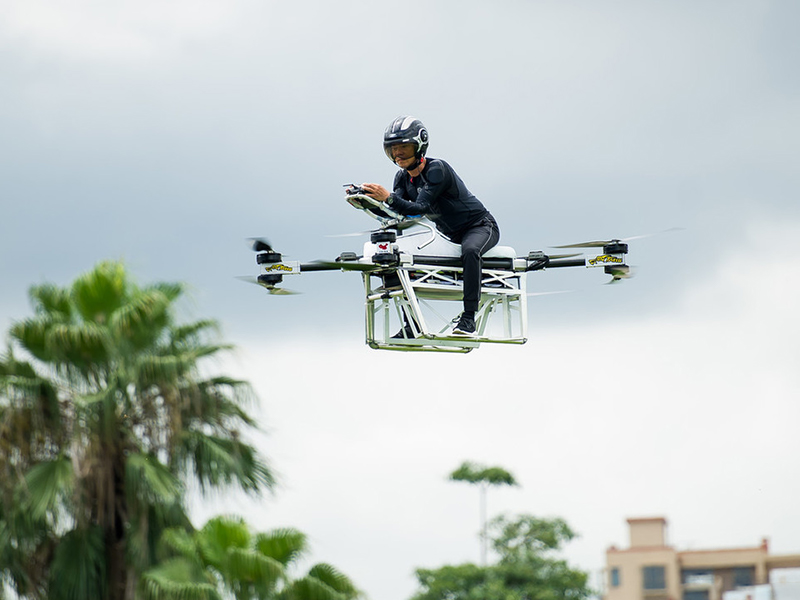

Urban Air Mobility

Smart Farming

Intelligent Livestock Farming

Autonomous Driving

Vocational Training

Flight Formation

Smart Construction

Home Security Monitoring

PID Cryptographic Firmware

Batch Customization, One-Click Solution

Enable seamless cloning of model configurations across identical devices via Mission Planner. With a single parameter tuning, effortlessly replicate settings for mass production. PID cryptographic locks critical data, preventing leakage of customized device parameters, ensuring secure and efficient batch manufacturing for all aircraft models.

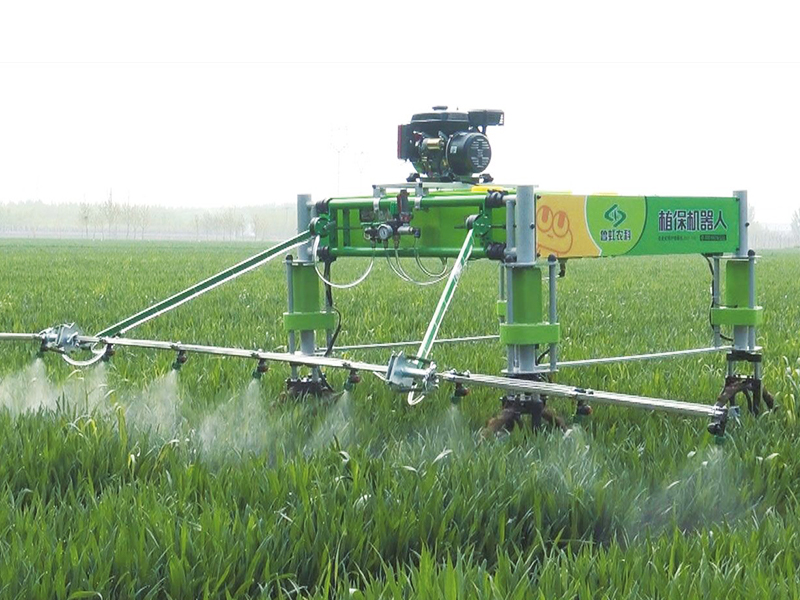

Case 1: Automatic Driving Control System for Agricultural Machinery Vehicles Designed by Radiolink

Multiple Mission Planner Supported

Parameters can be set in Radiolink Mission Planner, ArduPilot Mission Planner, and QGC Mission Planner.

*CrossFlight-CE can only upgrade the firmware from Radiolink and cannot upgrade the open-source firmware.

Power Module* with Wide Voltage Input

The power module that comes with the flight controller with a wide voltage input range of 2-12S (7.4-50.4V), a maximum detection current of 90A (single ESC maximum detection current is 22.5A), a BEC output voltage of 5.3±0.2V, and a BEC output current of 2A.

*Note: The default factory packing only includes one piece of power module (choose one from the two power modules above). When purchasing, please choose the correct power module package version according to the installation requirements.

GPS/I2C Port

(Connect GPS/Ultrasonic Sensor SUI04/SU04/I2C Expansion Board, etc.)

OSD Port

(Connect Image Transmission Module and Camera)

RC IN/BUZZER Port

(Connect receiver and buzzer)

POWER Port

(Connect power module)

Main Output

(Connected to ESC and motors/servos)

TELEM1/2 Output Port

(Connect data transmission/

Ultrasonic Sensor SU04/

OSD module, etc.)

USB Port (type-c)

(for firmware upgrade/

parameter tuning)

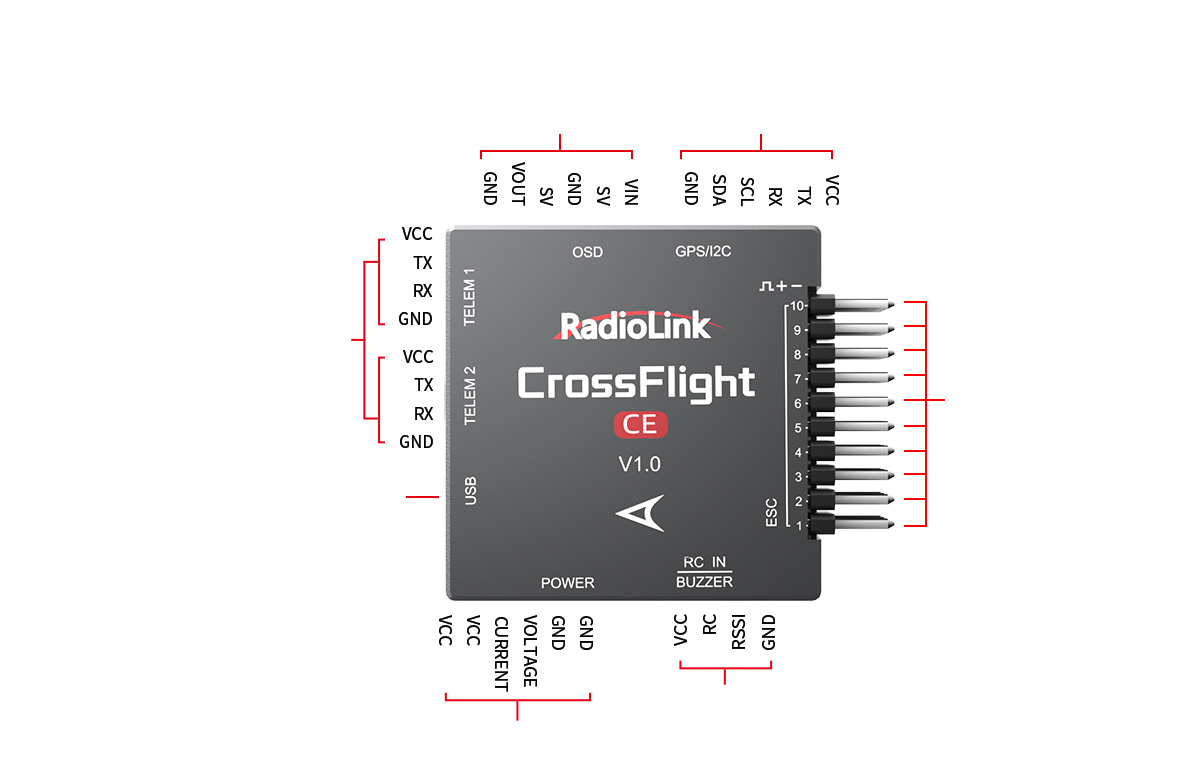

Definition of Each Port of CrossFlight-CE

OSD: GND, VOUT, VCC(5V), GND, VCC(5V), VIN

GPS/I2C: GND, SDA(3.3 pullups), SCL(3.3V pullups), RX(IN 3.3V), TX(OUT 3.3V), VCC(5V)

RC IN/BUZZER: VCC(5V), RC IN, GND, Null, BZ(-), BZ(+)

POWER: VCC(5V), VCC(5V), Current, Voltage, GND, GND

USB: Type-C

TELEM1: VCC(5V), TX(OUT 3.3V), RX(IN 3.3V), GND

TELEM2: VCC(5V), TX(OUT 3.3V), RX(IN 3.3V), GND

Multi-domain Application Expansion

High Anti-Jamming GPS

Supports external connection of Radiolink TS100 GPS module with dual anti-jamming technology (de-interference+anti-interference), effectively countering strong signal interference from sources like high-power drone video transmitters and high-voltage power lines. Maintains stable satellite lock even under 2W video transmission, ideal for high-speed, heavy-lift UAVs.

Centimeter-Level RTK Positioning System
Equipped with Radiolink's centimeter-level positioning RTK kits and the automatic driving control system of agricultural plant protection vehicles with the 90-degree steering control algorithm designed by Radiolink, driving a new paradigm of smart farming.

Comprehensive Technical Support

With more than 22 years of R&D experience in the electric industry can provide detailed instructions and tutorial videos from installation to flight.

All-round technical support such as installation, application, and calibration from ESC, motor, and HD image transmission to the flight controller, and transmitter.

Almost all the parts of the Drone you need we can offer.

* CrossFlight-CE can set parameters by Radiolink Mission Planner, ArduPilot Mission Planner, and QGC Mission Planner.

* CrossFlight-CE can only upgrade the firmware by Radiolink Mission Planner and the firmware from Radiolink.

* The latest firmware of CrossFlight-CE will not be notified separately. Please pay attention to the firmware download section of Radiolink's official website to view the latest firmware and firmware instructions. Please upgrade according to your needs.

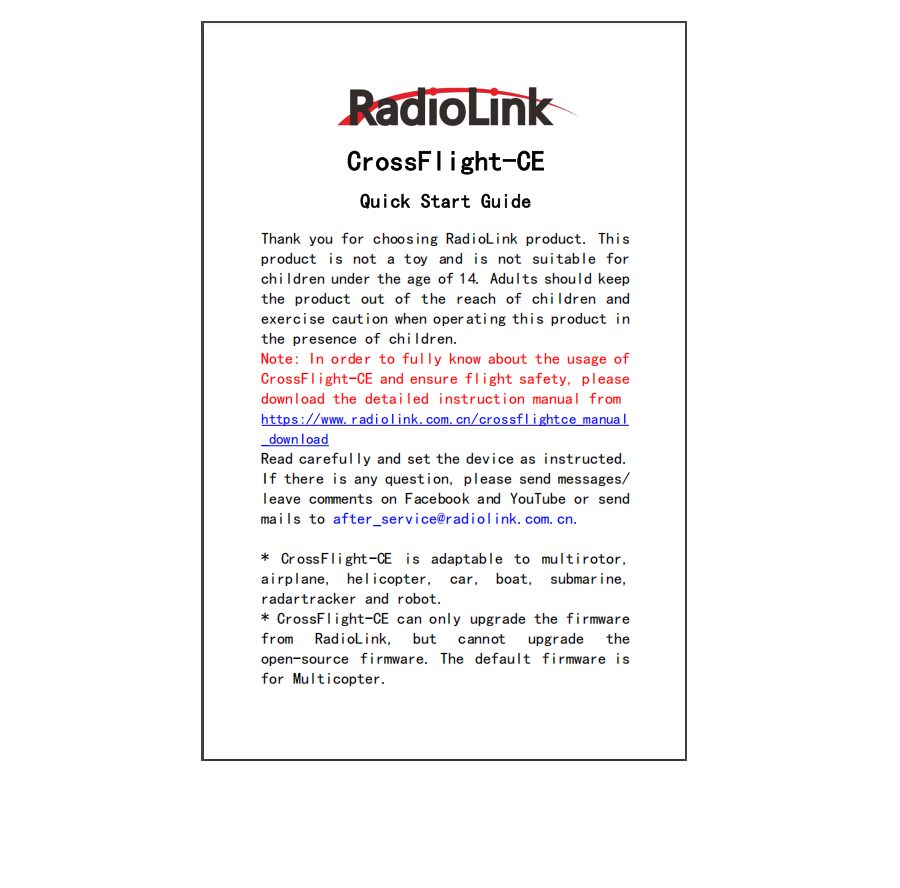

* In the process of using CrossFlight-CE, if you encounter problems, you can view the instructions, tutorials, or FAQ on the navigation bar of this introduction.

* After consulting all the tutorials, you still have questions about the operation. You can consult our technical support by emailing after_service@radiolink.com.cn

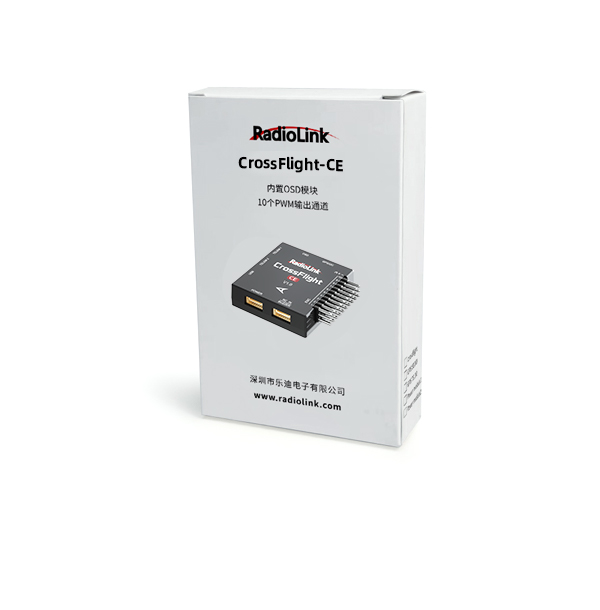

Package List for CrossFlight-CE
