RTC8

SBUS/PPM to CAN Protocol Encoder

Real-time LED Indicator       Industrial Configuration          Technology Assurance           Use Guarantee

Dual Signals Input            Parameters User-defined      Data Visualization Display         Upgrade Online

Dual Signals Input

RTC8, with dual signals that SBUS and PPM signals can be identified and converted automatically, is suitable for most remote controls.

Compared with the protocol transverter which with single SBUS signal, the RTC8 greatly expands the options range of remote controls.

Parameters User-defined

The bit rate and the frame ID can be set by connecting the RTC8 parameters setup APP through the Type-C cable. No need to modify the original CAN protocol or find a manufacturer to customize the protocol to adapt to the converter, parameters can be set as you need.

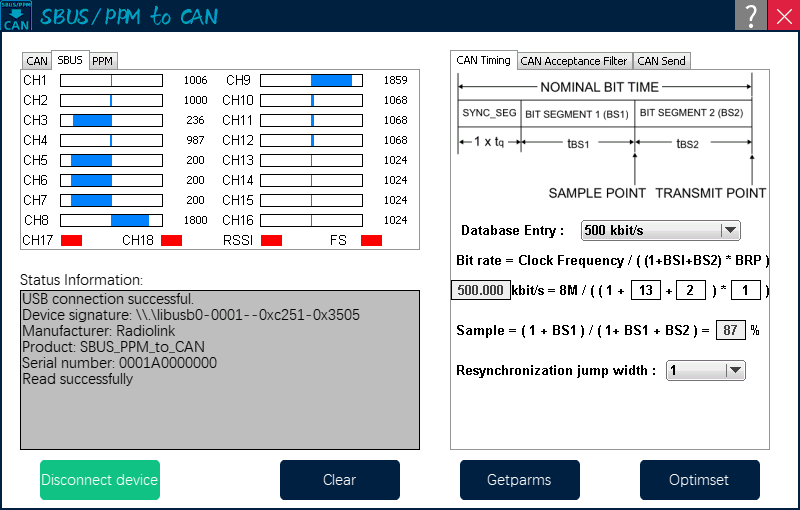

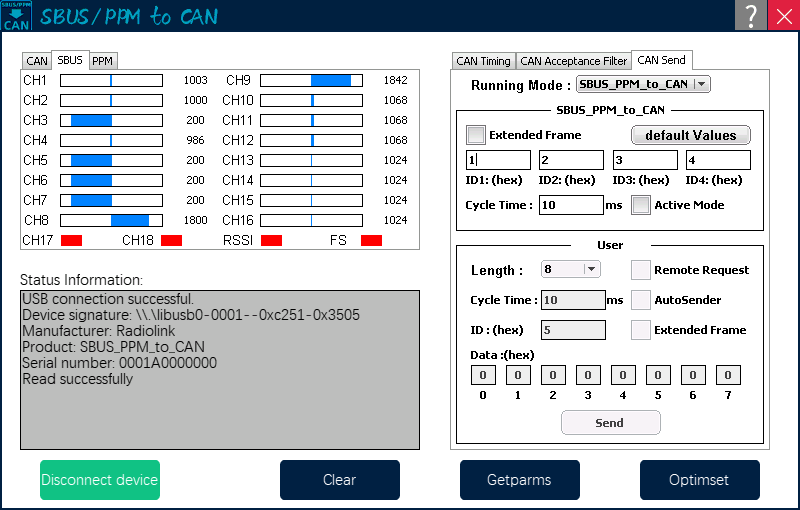

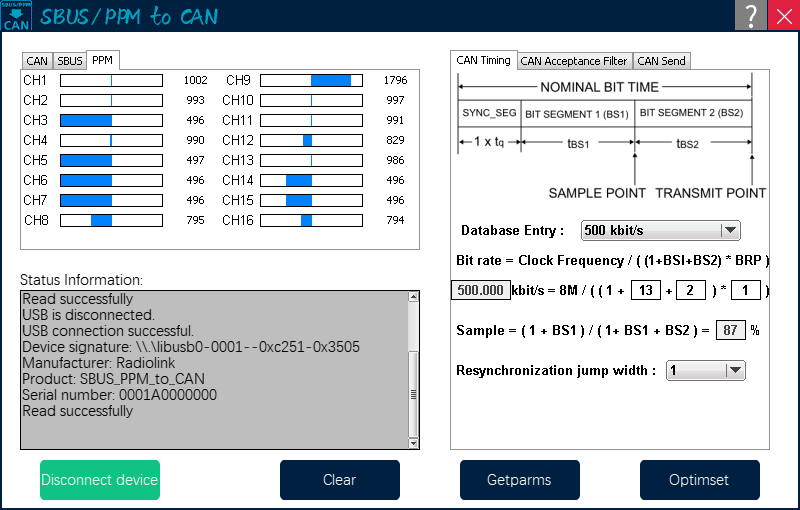

Parameters Visualization Display

The parameter set APP can not only set the CAN protocol, the bit rate, the frame ID, etc. but also can

observe the CAN and SBUS/PPM data at the same time, which is simple and clear to troubleshoot.

Upgrade Online

Keeping upgrade, RTC8 users can download the latest upgrade firmware on the official website

and then upgrade to synchronize the latest usage requirements.

Real-time LED Indicator

Different LEDs switch automatically to identify whether the signal received is SBUS, PPM, or CAN data.

Industrial Configuration

Component selection, software and hardware reliability design,

and product testing all implement industry standards, and ensure the reliability of the products.

Suitable for smart cars, pilotless automobiles, DJI gimbal, and other cutting-edge UAV or car solutions.

DJI Gimbal                     Unmanned Delivery Vehicle                       Smart Car                              Pilotless Automobiles

Technology Assurance

20 years of industry accumulation, continuous independent research and development capabilities，

the establishment of a safety research and development system, and timely synchronization of

current industry-related advanced technologies to ensure the continued vitality of products!

Technical Support:

Flight Formation

Technical Support:

Security and Rescue

Technical Support:

Logistics System

Technical Support:

Agricultural Pilotless

Automobiles System

Use Guarantee

With the accumulation of research and development in the past ten years,

we have reanalyzed and retested all the functions of all the models including airplanes, multicopter, helicopters, cars, and boats.

All the usage guidance needed for all functions from basic use, PID parameter adjustment, log viewing, etc. of each model we can offer.

FAQ on the official website, Facebook, YouTube, Instagram, and the professional section of the forum,

Radiolink is eager to help users to use Radiolink products on multiple platforms.

Terminal resistance 120Ω

Short-circuit jumper cap, which can absorb signal reflection and echo.

Firmware Update Button

Press and hold the upgrade button and connect the RTC8 to the computer via the USB port to enter the upgrade mode.

Power LED

The green LED will be on after the RTC8 is powered

USB Port

① connect to the parameters set APP (set by computer) for parameters setting and data observe

② connect to the upgrade tool for firmware upgrade

CAN input and output interface

① Used to send and receive CAN data

② Operating baud rate range:

5Kbit/s ~1Mbit/s

SBUS/PPM Input

(S.B/PPM BAT GND)

Communication Status LED

① The blue LED flashes twice if the RTC8 receives the SBUS signal

② The blue LED flashes three times if the RTC8 receives the PPM signal

③ The red LED flashes twice if the RTC8 receives the valid CAN data (unshielded ID data)

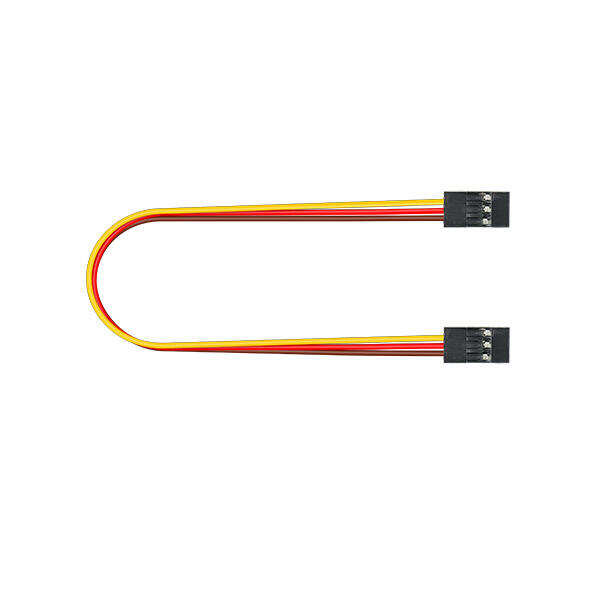

RTC8 Packing List
