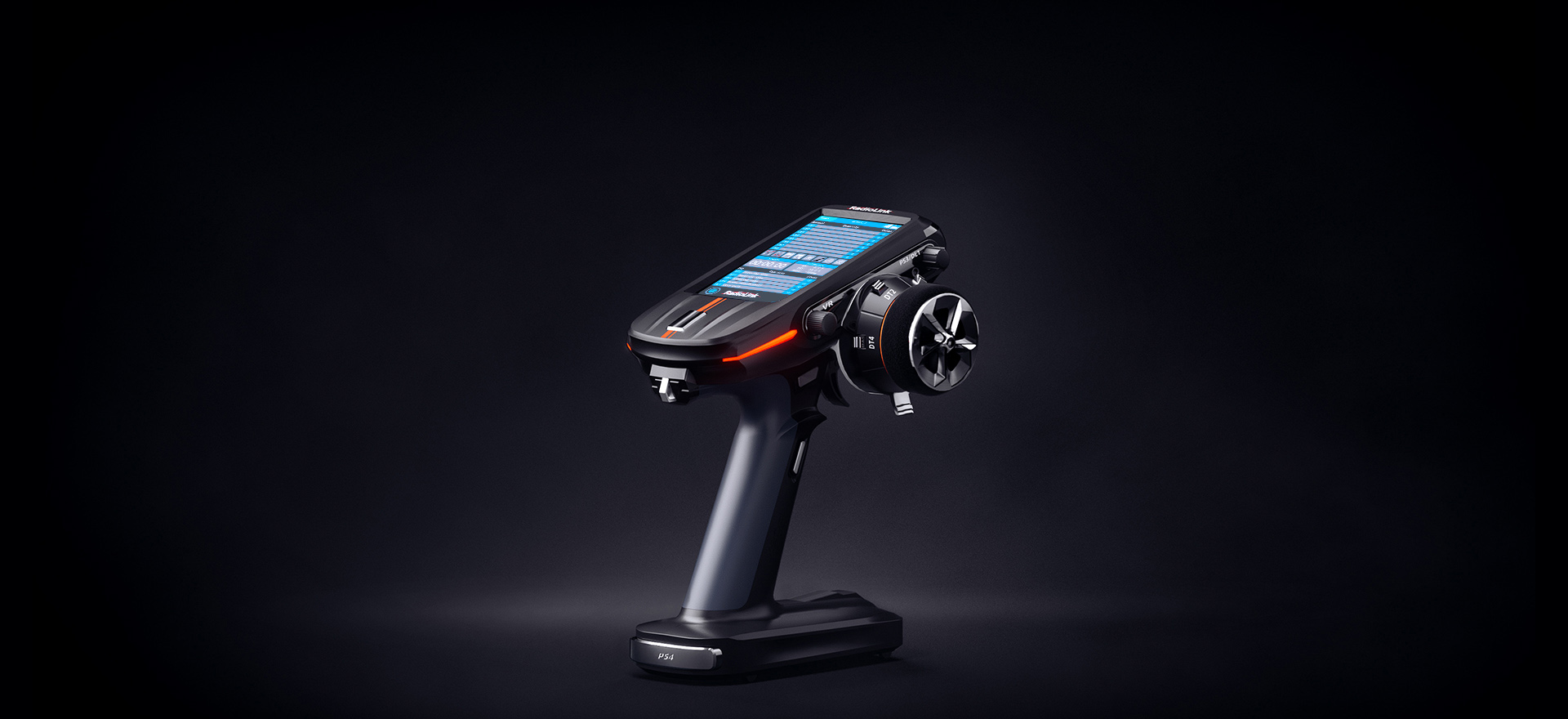

RadioLink RC8X

8 Channels with Full Color IPS Touch Screen

Applications In All One, More than Expectations

4.3 Inches Full Color

IPS Touch Screen

User-defined Voice

Broadcast Pack

One Screen, Dual Use

(Use as FPV Display)

8 Channels

for Multiple Types of Models

600 Meters

Ground Control Distance

200 Groups

Models Storage

16 Models

Subsidiary ID Storage

8 Groups

Programmable Mix Control

3ms

Response Latency

Breakthrough Communication Technology

Pseudo-Random Frequency Hopping Technology

The tried-and-tested remote control with non-interference communication technology has been favored by many enterprises such as Xiaomi CyberDog, Dongfeng Motor Corporation, WULING Motor (SGMW), UBTECH, MUYUAN Food, OceanAlpha, etc.

RadioLink transmitters become the main remote-control equipment in the fields of agriculture, industry, security, and education.

Open the Era of Model Remote Control Smart Machine

In terms of hardware, it has broken through the traditional MCU (microprocessor cortex-M) architecture of the remote control and

adopts the application-level CPU (cortex-A) architecture that supports Linux (android).

In terms of software, the general but non-real-time Linux system on the CPU architecture is abandoned, and it is challenging to

adopt an efficient RTOS real-time operating system to achieve the perfect combination of multimedia interaction and real-time control.

Scary Faster

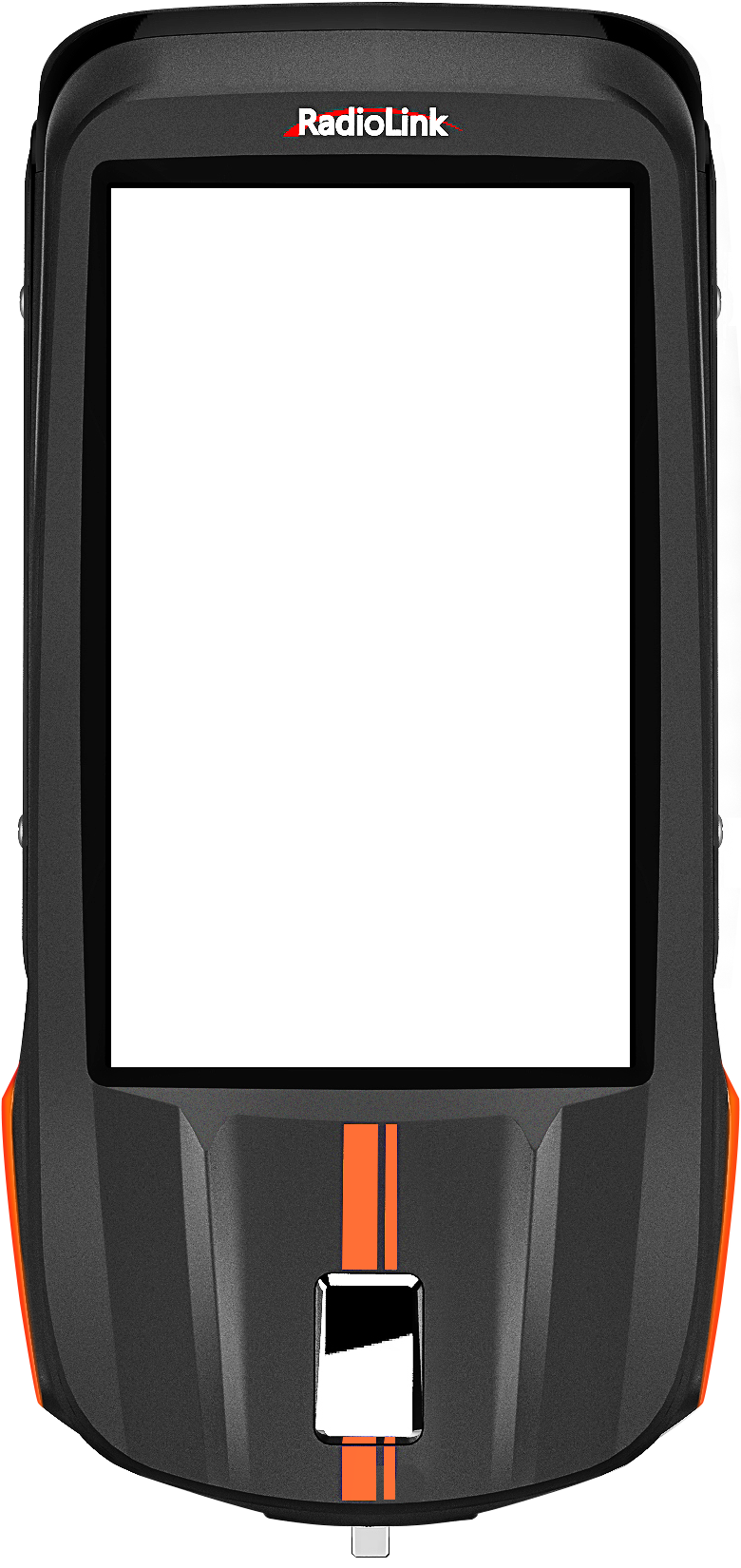

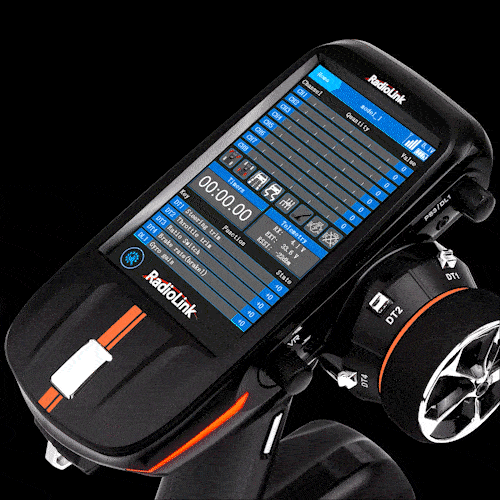

RC8X has 4.3 inches, 800*480 full-color, backlit IPS touch screen, and fast scroll without lag. There are zero delays in fast-switching function pages. Mobile phone-level screen refresh experience.

Far More Than Fast

The ultra-narrow screen frame is a challenge from electronic to mechanical design.

Get More Variety Fun

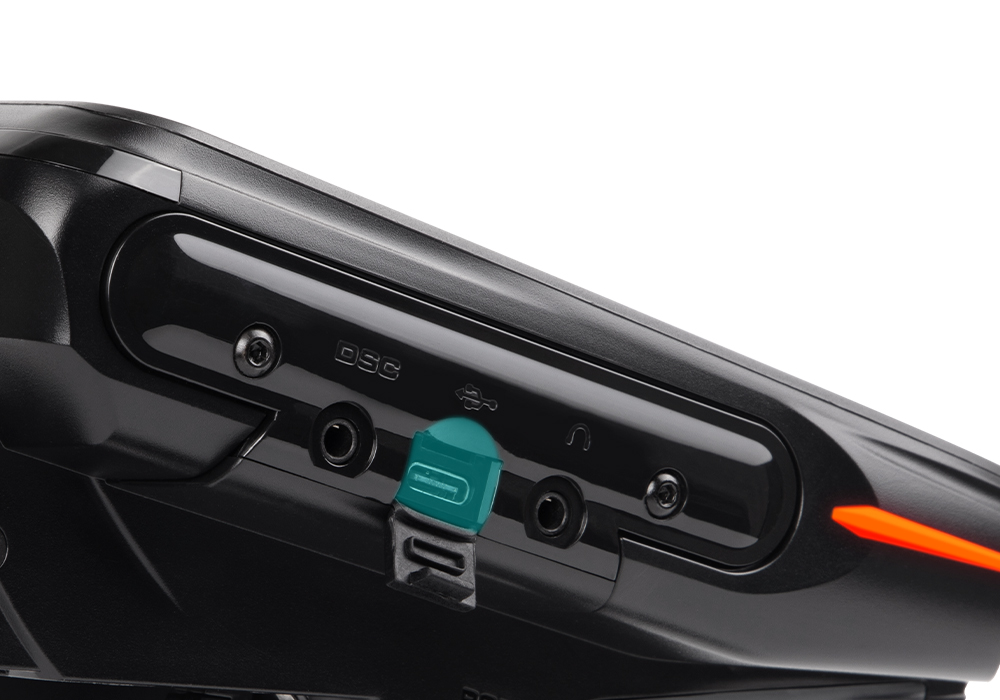

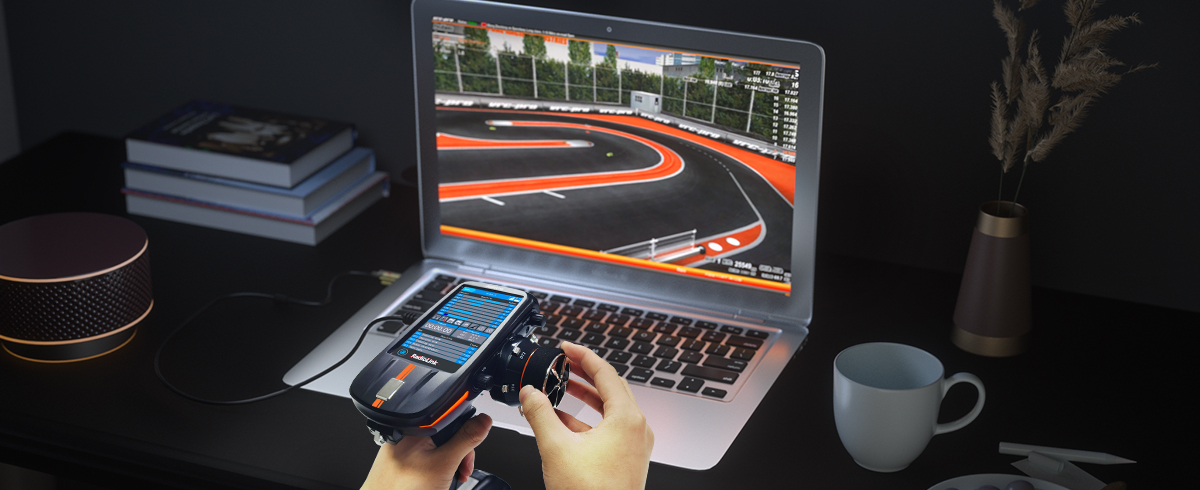

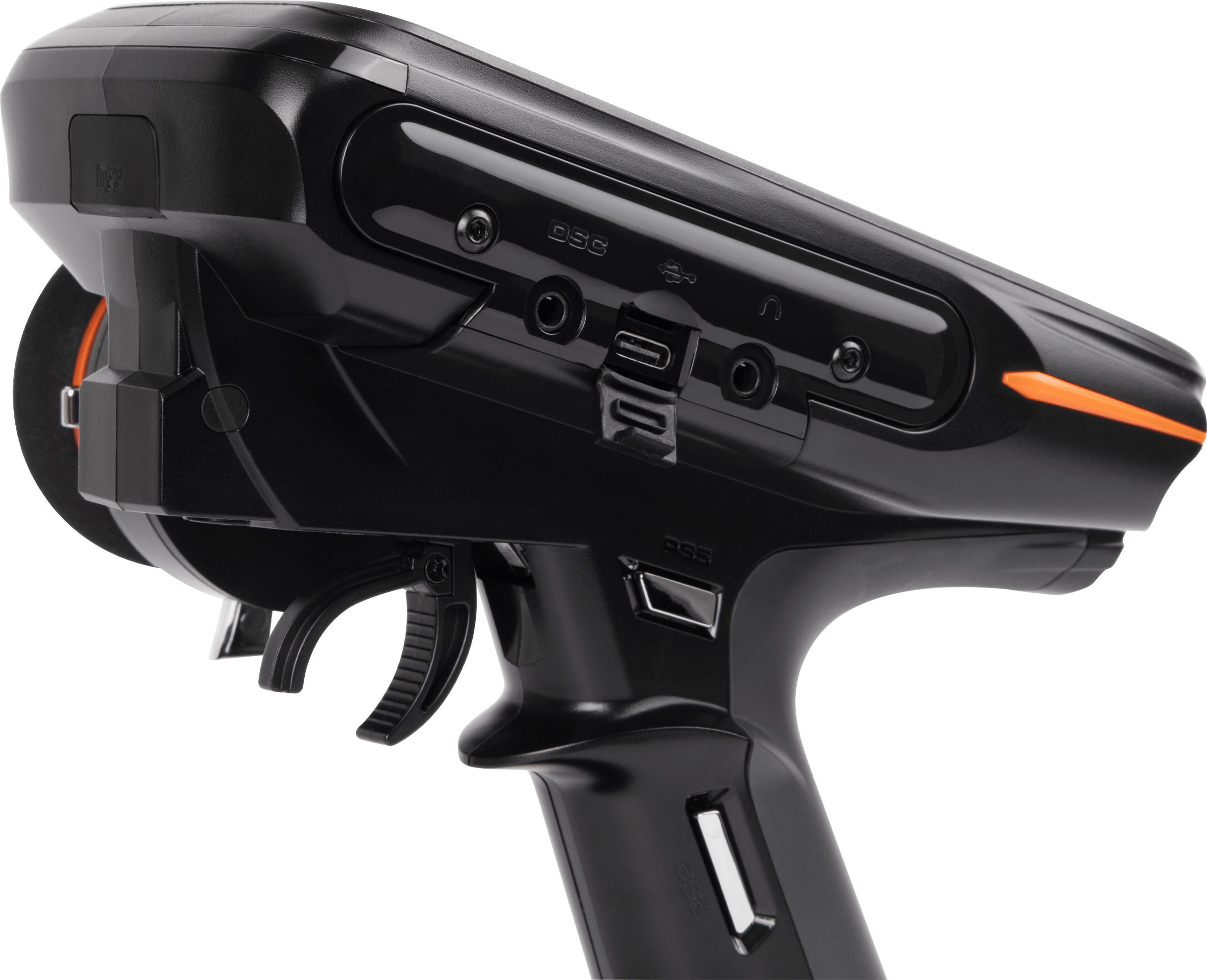

The DSC port of RC8X can be set as the Simulator Function (support VRC Pro, CarX, Assetto Corsa Competizione, etc. simulators),

you can also have a wonderful online showdown with friends at home in isolation, not boring at home.

The DSC port of RC8X can be set as the FPV Head Track Function (3-axis or 2-axis track can be selected)

to fully enjoy the funny of First-Person View of racing or crawling.

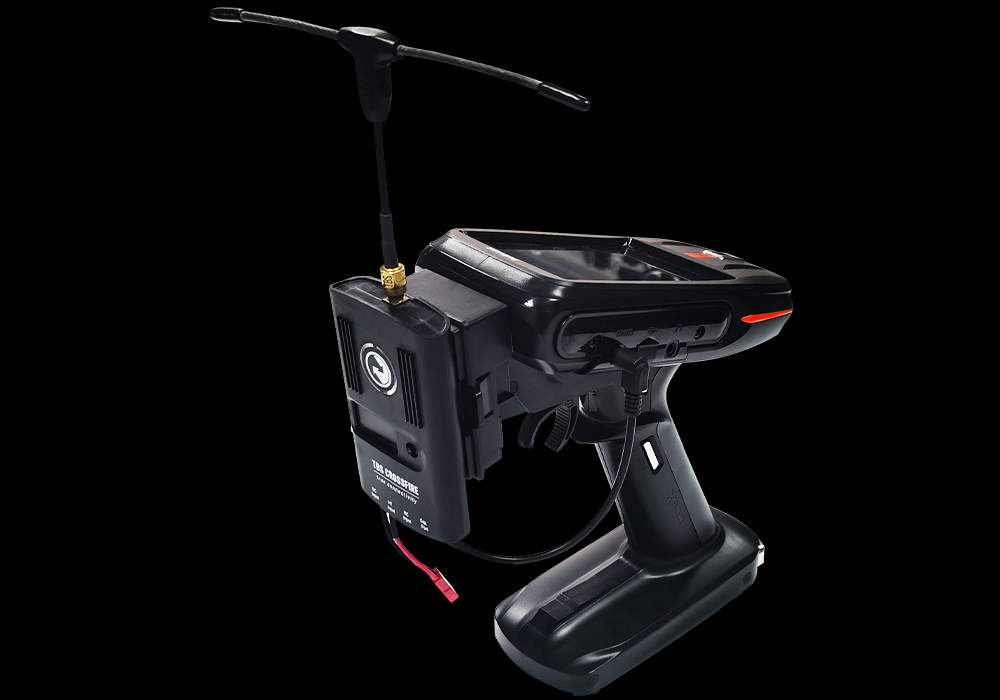

The DSC port of RC8X can be set as the TBS Crossfire Function, which greatly increases

the remote-control distance in high power mode, and remote fun off-road is not a problem.

Simulator Function

Headphone Mode

FPV Head Track Function

TBS Crossfire Function

600 Meters Ground Control Distance

With the same FHSS spread spectrum of AT9S Pro and 67 channels, pseudo-random frequency hopping makes RC8X have superior anti-interference ability both in the same frequency band and in different frequency bands. RC8X achieves an excellent user experience even if you are crawling, bashing, or boating in harsh conditions.

The surface control distance is up to 600 meters.

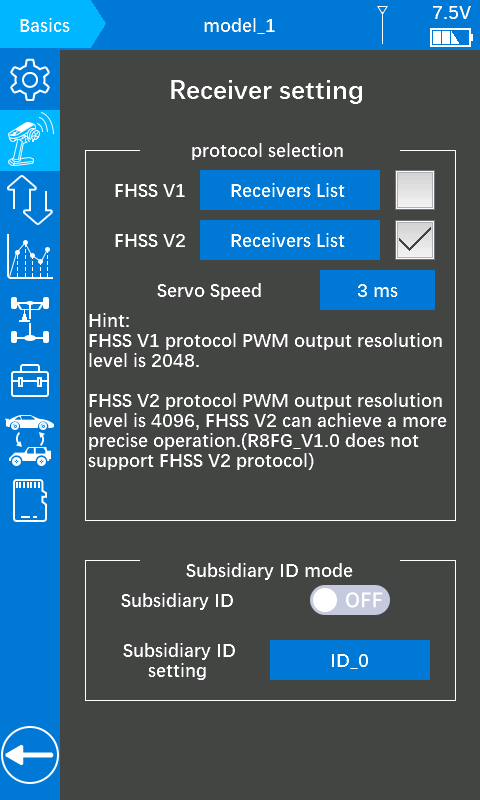

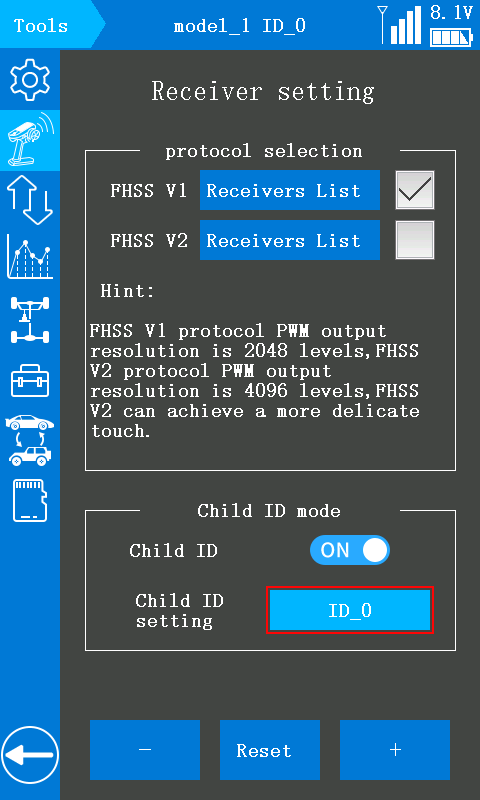

3ms* Response

Servo speed can be selected from 14ms, 4ms, and 3ms. 14ms is suggested selected if connect with the analog servo while 4ms or 3ms is suggested selected if connect with the digital servo.

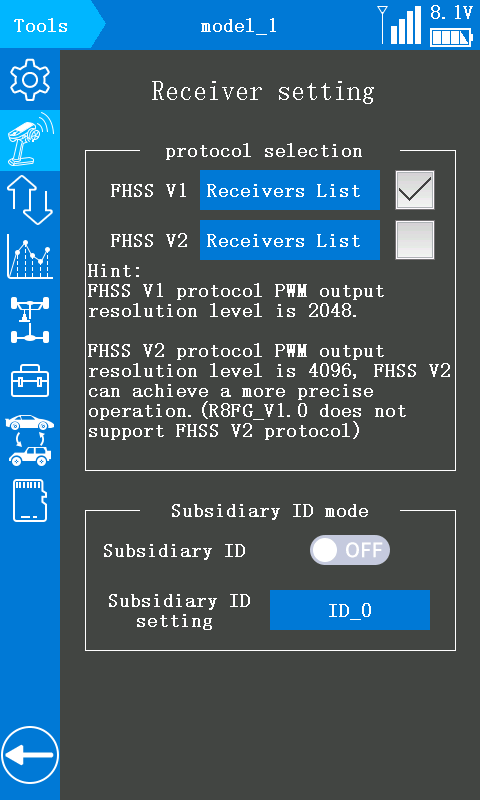

*Attention: It is necessary to update the firmware of RC8X to V1.1.5 or above, and then select FHSS V2 protocol to display this option. And make sure the R8FG is with the V2.1 tags.

Applications As You Wished

Imagination is Endless, Creativity is Endless

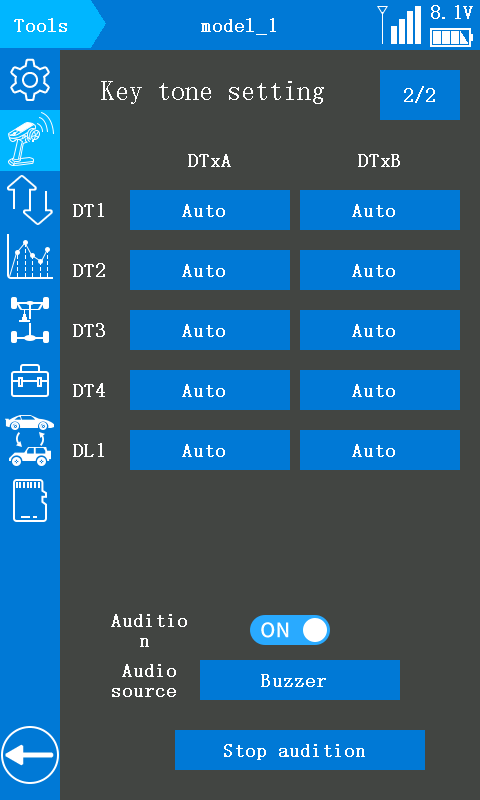

The Setting Menu, font, desktop, system theme, voice broadcast content, voice broadcast form, language, and more can be customized, allowing you to achieve a unique 8-channel transmitter without requiring any code modifications.

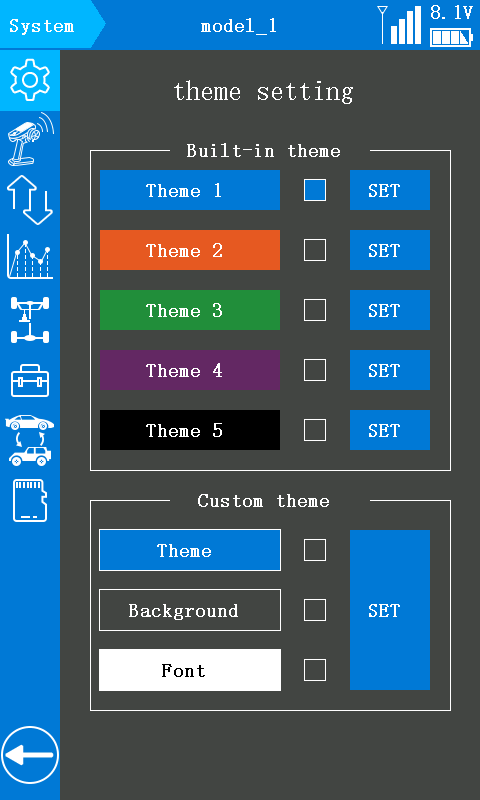

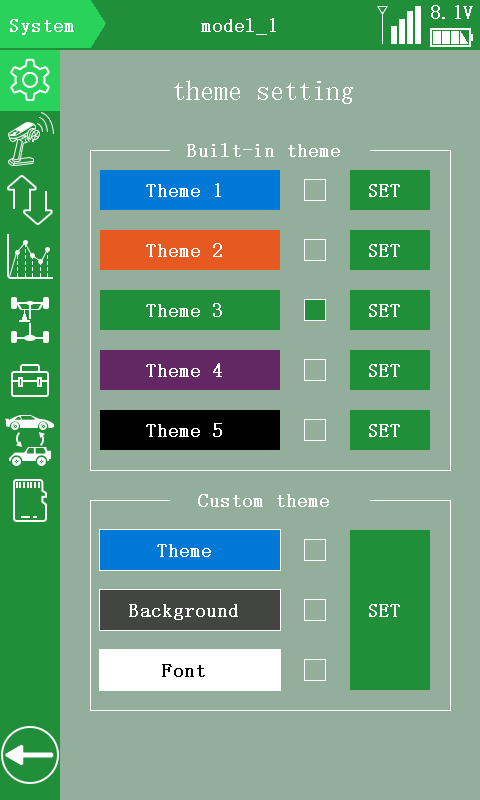

System Theme

Customization

Voice

Customization

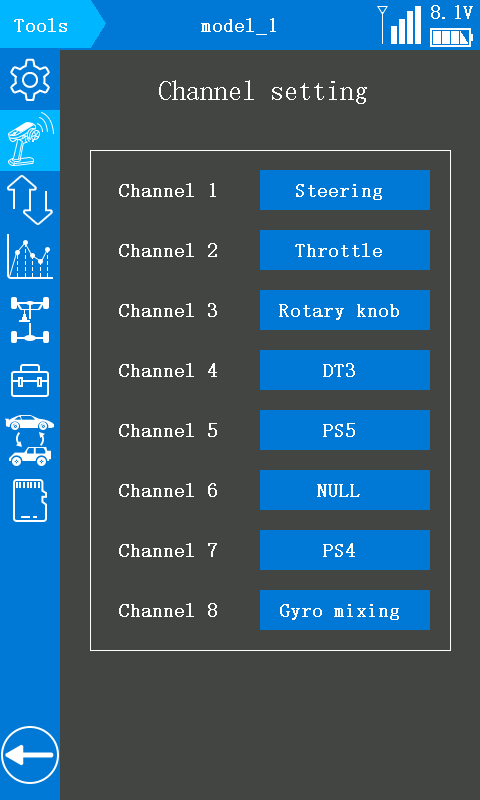

Channel

Customization

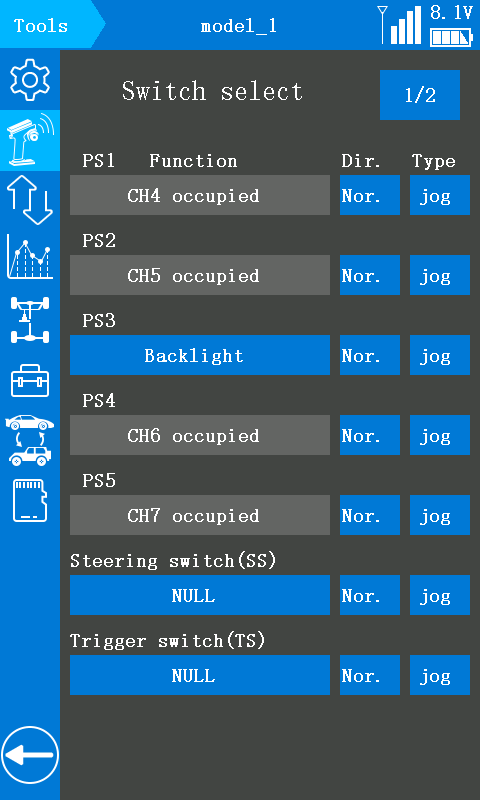

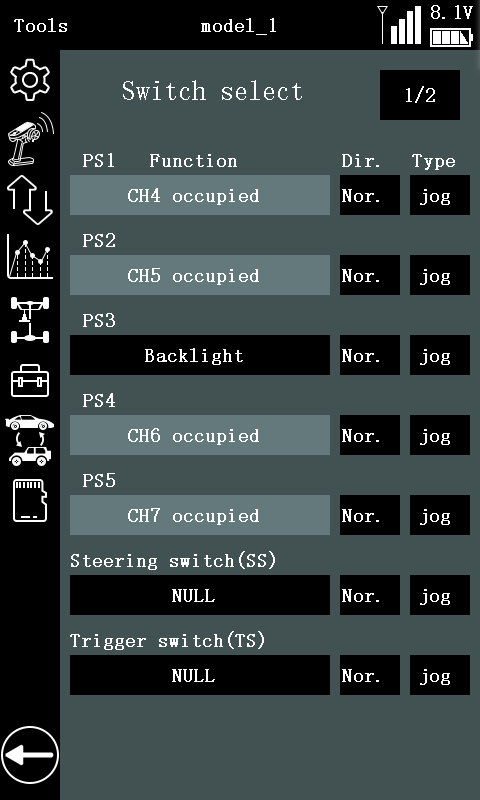

Switch

Customization

RC8X Home Screen Wallpaper Can Be Customized

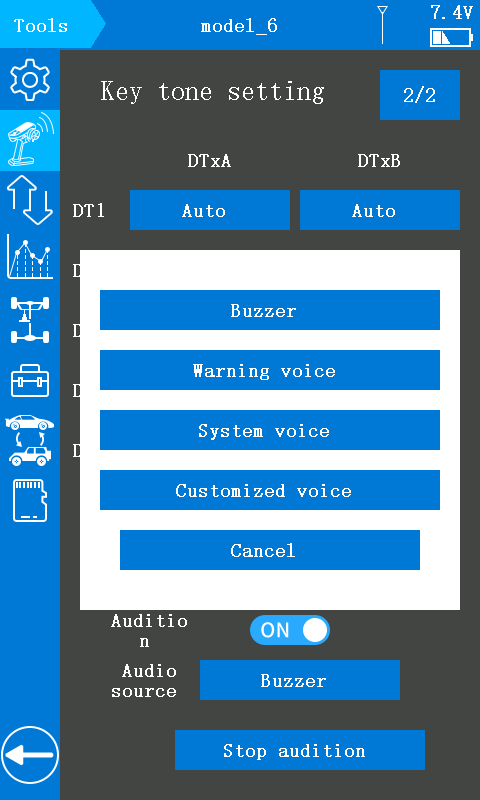

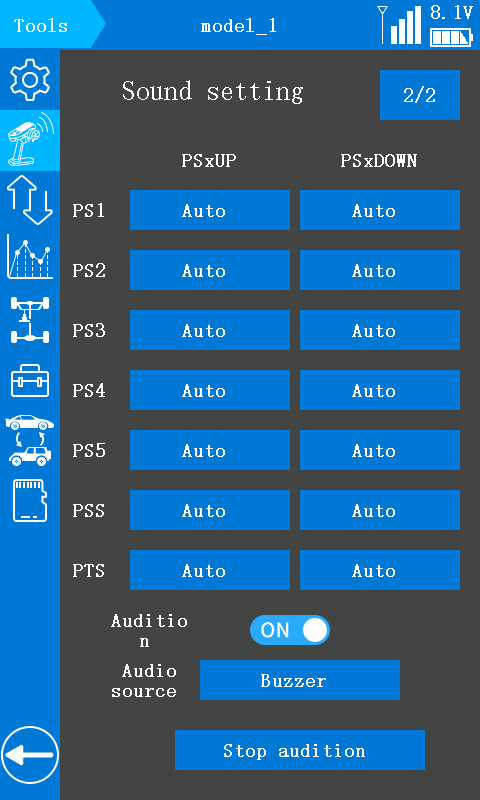

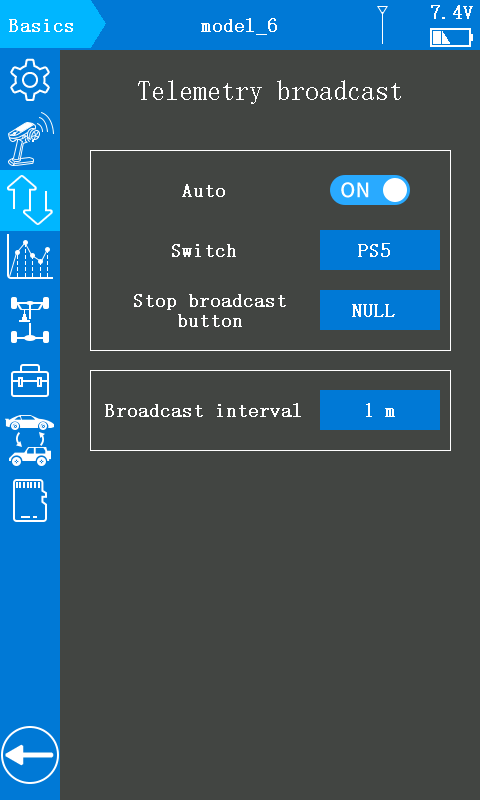

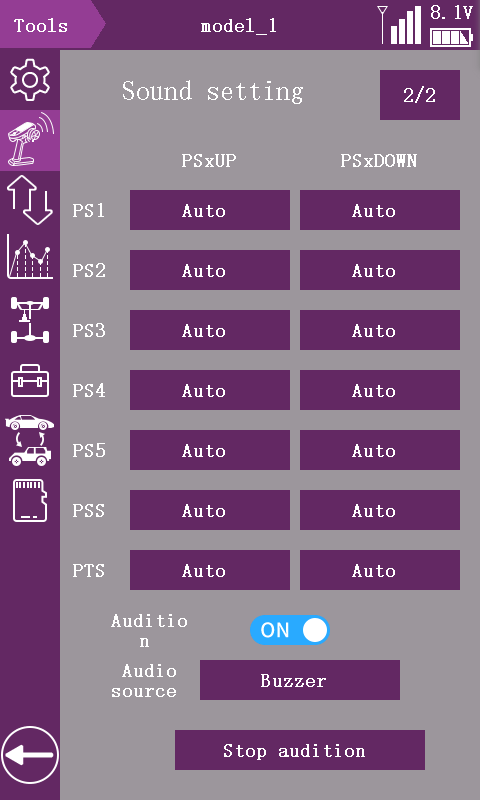

Voice Broadcast Customization

Not Only Can be Heard But Also Sound Great

Low transmitter voltage, low receiver voltage, low model battery voltage, low RSSI, and all the operating can set an alarm with voice broadcast.

Voice broadcast language, broadcast form, and broadcast content (for example, differential lock on, differential lock off, turn on FPV head track function, etc.) can be customization according to actual user needs.

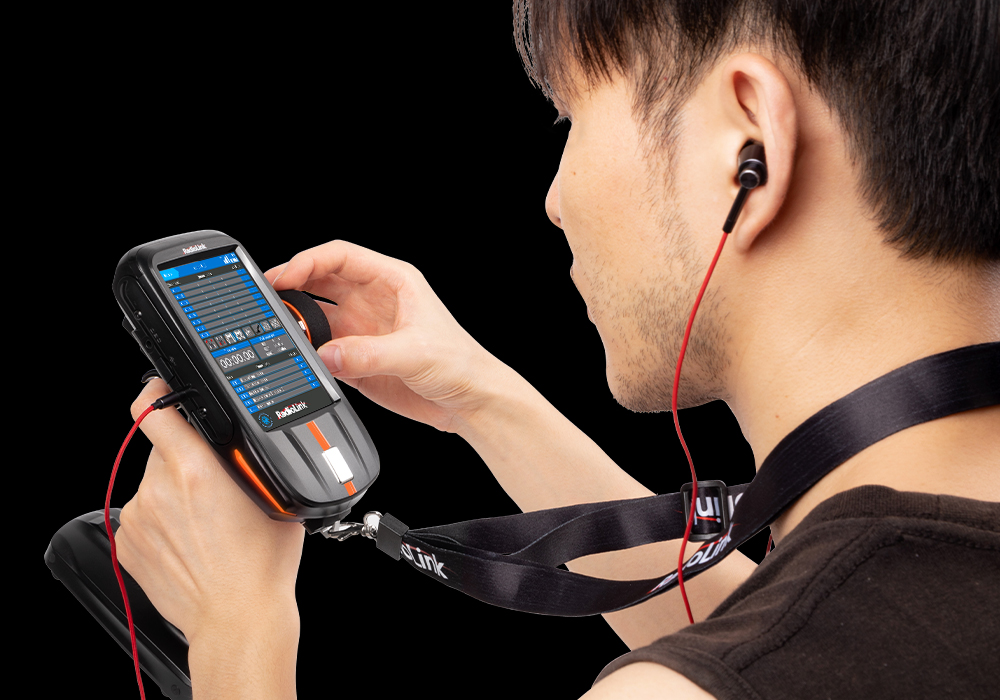

In a noisy environment, you can listen to the voice broadcast clearly through the headphones.

In a quiet environment, you can listen to the voice broadcast through the headphones without disturbing others.

* Multi-timbre, broadcast type(sweet, natural, or business atmosphere, etc.), broadcast style, broadcast intonation, speech rate, volume, dialect, etc., need to make your own voice packages according to your own needs.

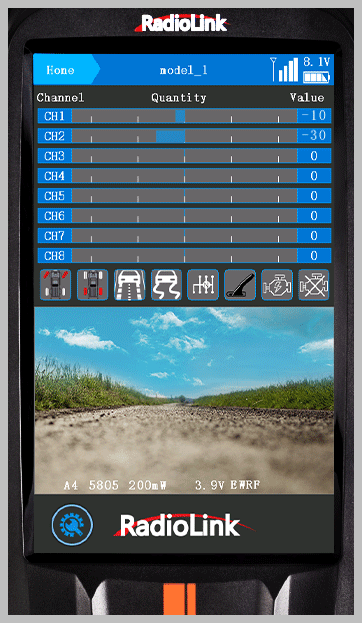

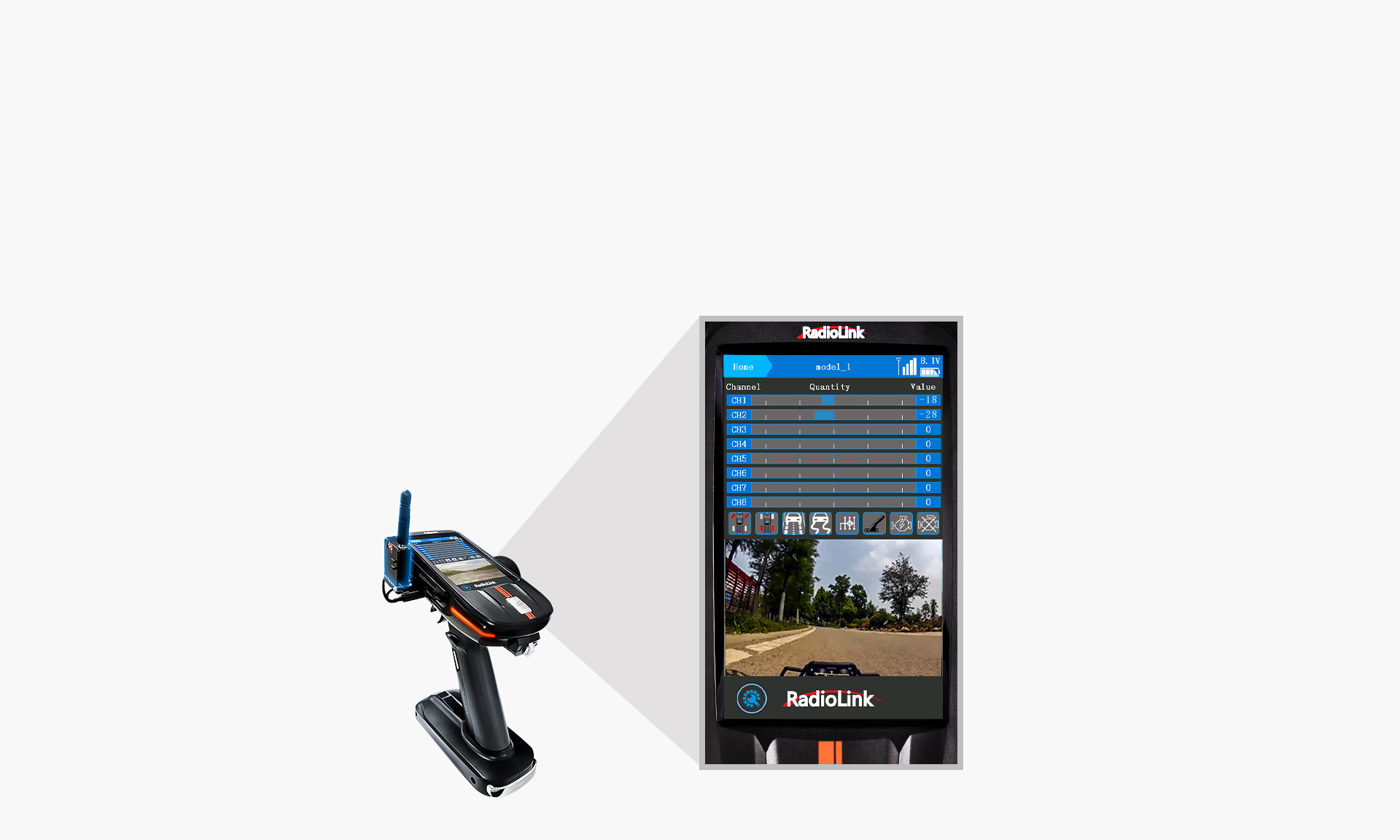

One Screen, Dual Use

It Is Both a Parameter Setup Screen and an FPV Screen

True Immersive Experience

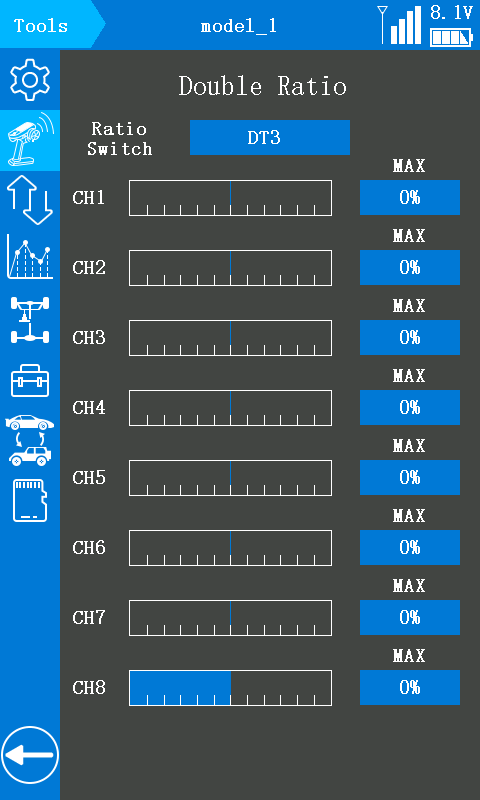

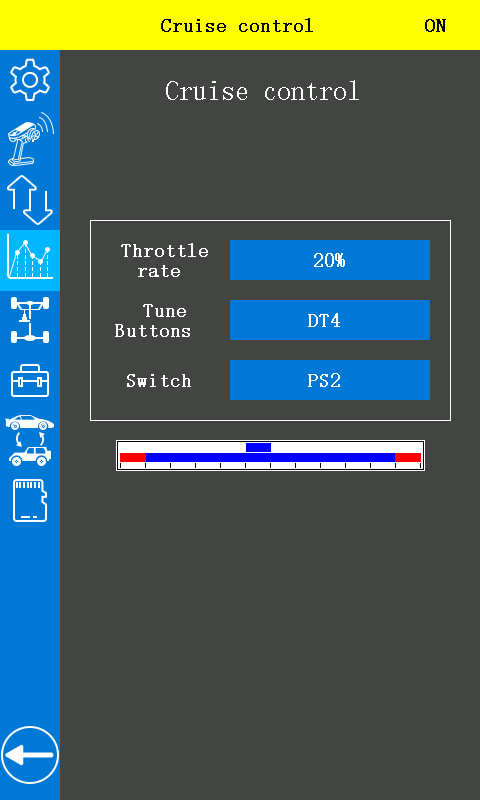

The screen is the default for parameter setup, which has a simple and convenient logical layout; most users, even beginners, can complete complex programming tasks on the fly.

When an external 5.8G receiver module is connected, the upper part of the RC8X screen is still the parameter setup screen,

and the lower part becomes the FPV screen.

5.8G Image Transmission

Receiver Module

Parameter Setup

Screen

FPV Screen

8 Channels for Multiple Types of Models

RC8X is an ideal partner for all types of RC cars and boats in the market, including single-engine and twin-engine models such as Crawlers, Drag Racing Car, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car, GP RC Car, EP RC Car, Sailboats, Trimaran, Bait Boat, Remote Controlled Lifebuoy, and other types of RC cars or boats.

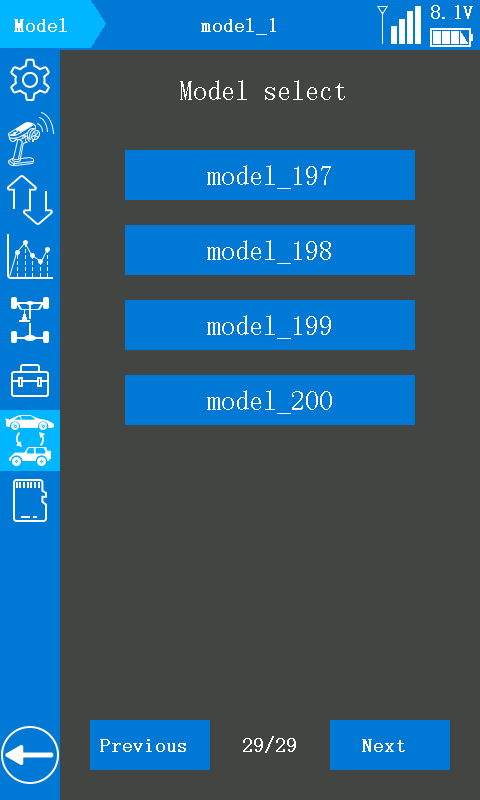

200 Groups of

Models Storage

16 Groups of Models

Subsidiary ID Storage

8 Groups of

Programmable Mix Control

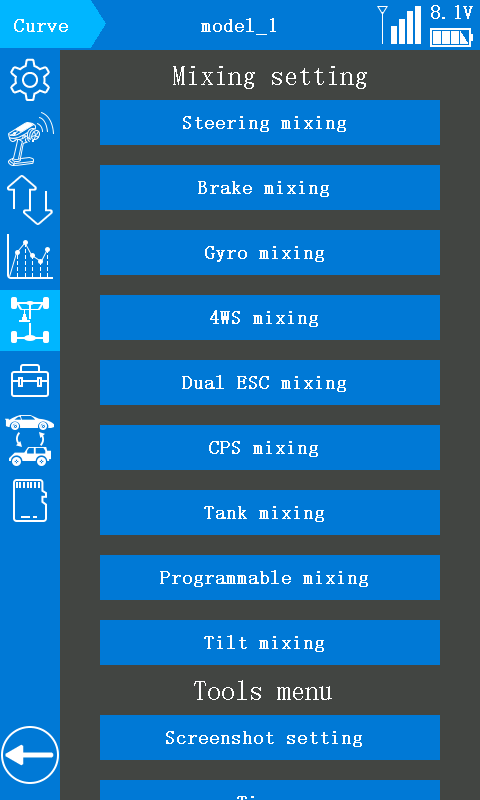

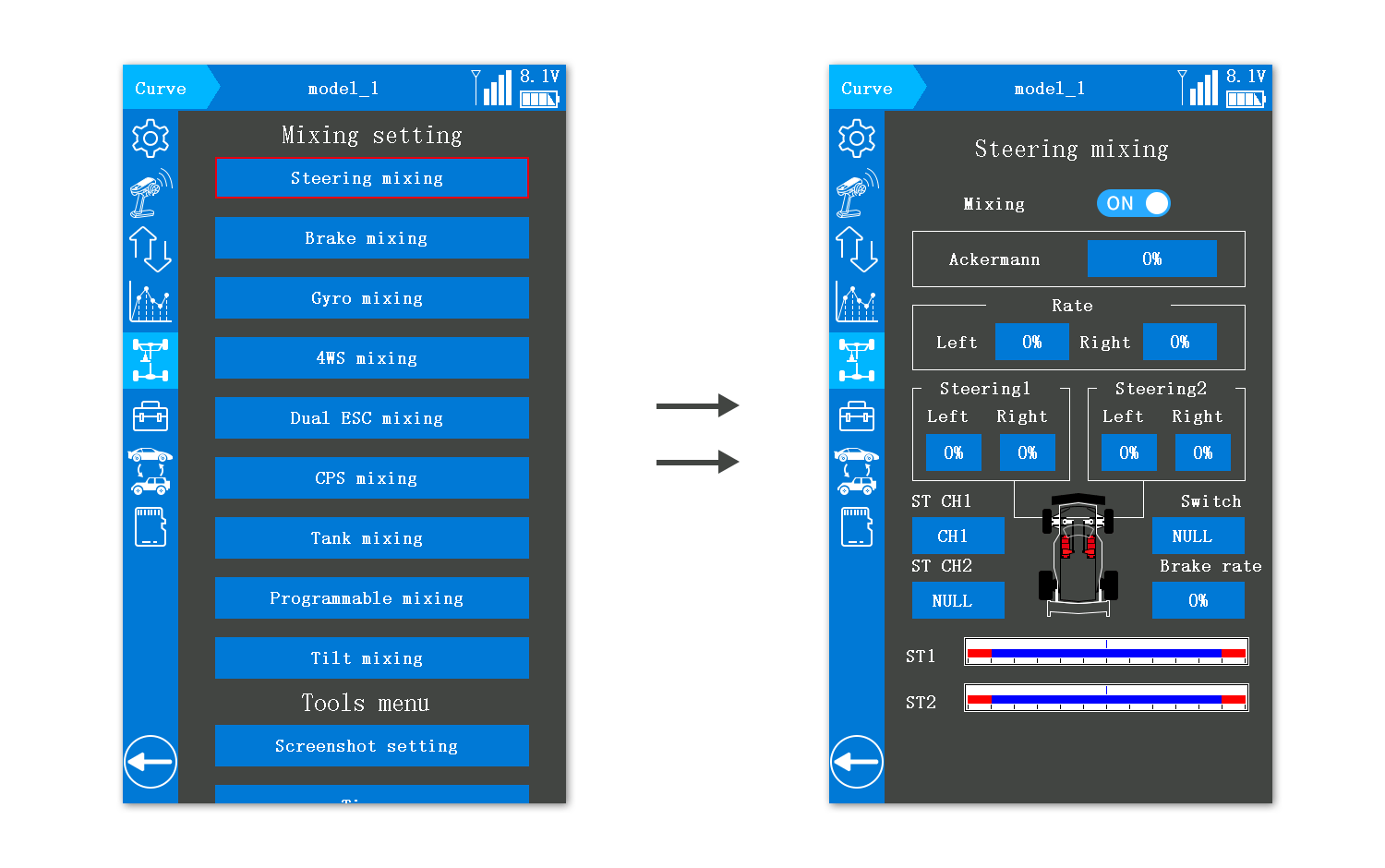

Multiple Mix Control such as 4WS

Parameters Easy to Set

4WS mixing is designed for crawlers, timber trucks, and other 4WS-type vehicles.

Brake mixing allows the front and rear wheels of 1/5 gas power cars and other large cars can be adjusted independently.

Tank mixing is designed for the dual engine intended for vehicles such as tanks.

Tilt mixing is designed for boats, easy to set the parameters and fully enjoy the boating.

The new way to play RC cars, the party will not be left behind

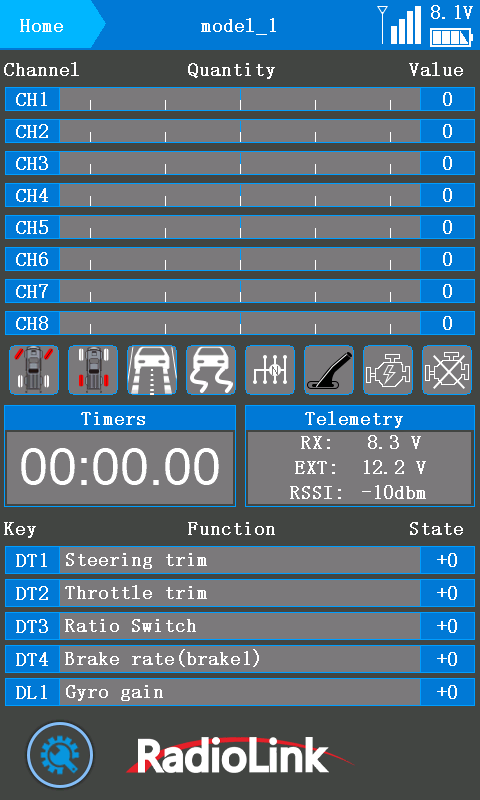

Real-time Built-In Telemetry of Model Battery Voltage

Telemetry is capable of RSSI, receiver, and model battery voltage.

RSSI and receiver voltage data will be displayed once binding is complete.

The model voltage will be displayed by connecting the wire to the ESC and the battery

And, telemetry of the maximum 14S (58.8V) battery is supported if bound with R8FGH,

telemetry of the maximum 8S (33.6V) battery is supported if bound with R7FG, R8FG.

Receiver with Gyro Integrated

Customizable Gyro Sensitivity

Standard receiver R8FG built-in gyro and supports high-voltage servo.

It is anti-slip and keeps the uni-direction. With the integrated gyro in R8FG installed, the vehicle turns more smoothly,

and drifting from high speed can be prevented.

The easy setting ensures better control of gyro stabilization.

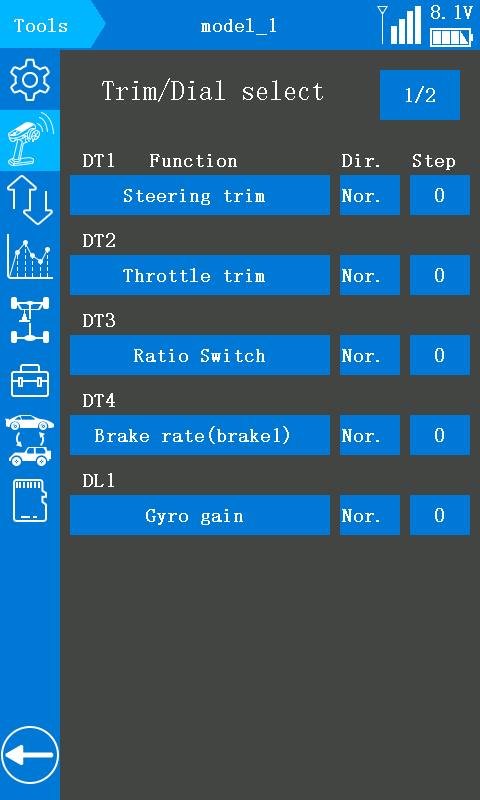

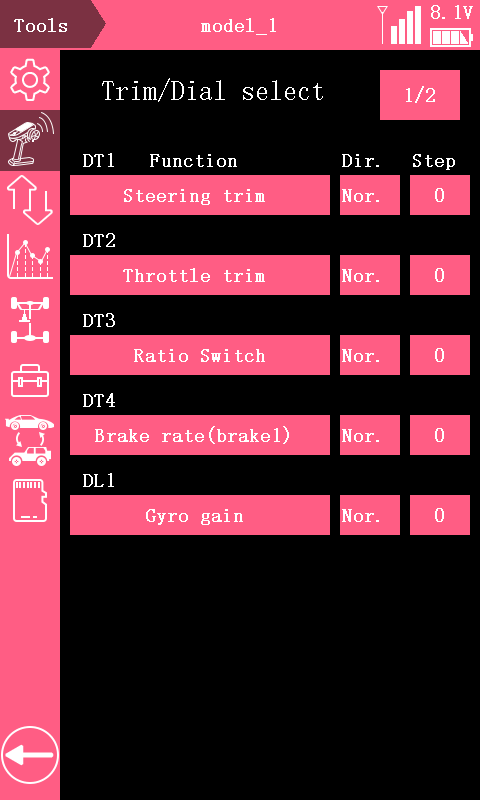

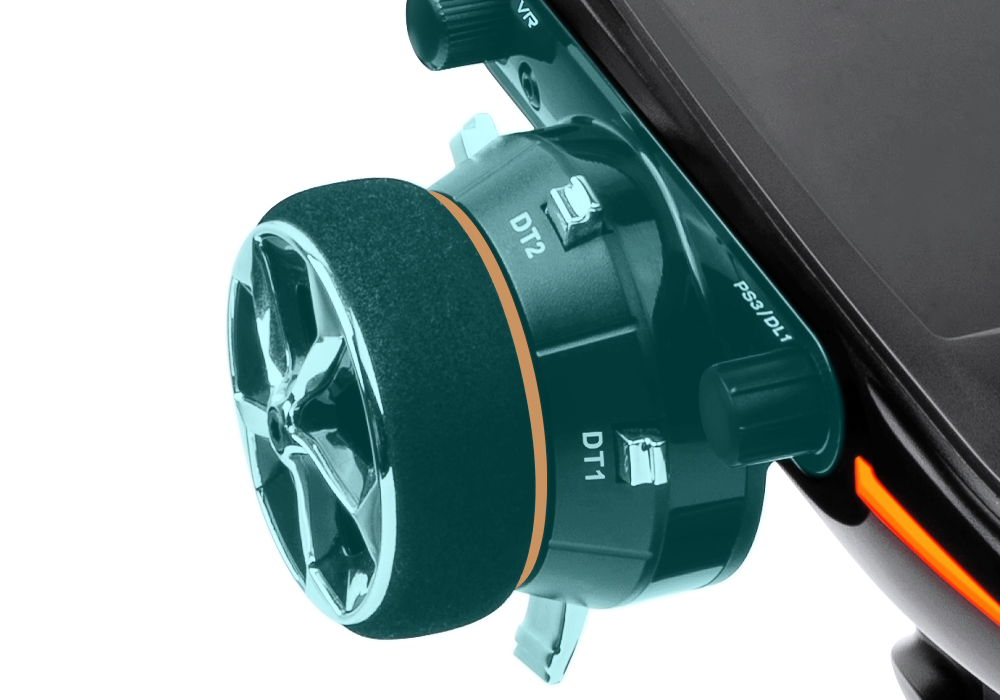

Gyro sensitivity can be adjusted by CH8, which is controlled by the DL1 switch by default to maximize or minimize the gyro function.

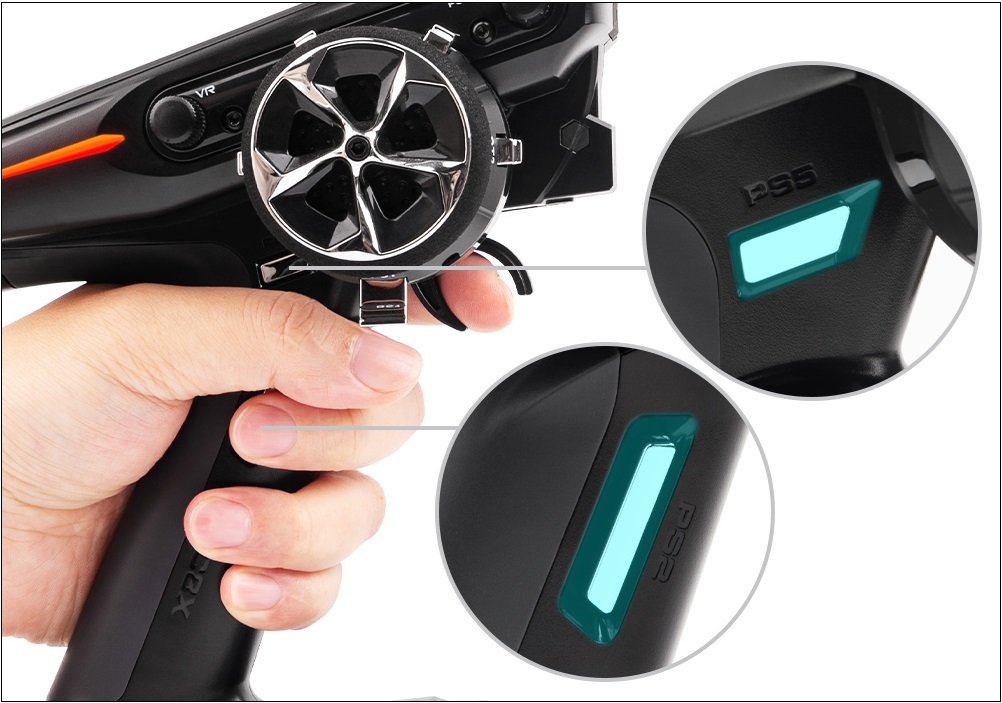

Ergonomically Designed for Hours of Fun

User-friendly design for each operation and handling.

Threaded design helps antiskid when the drivers are in long-term practice or in hot weather.

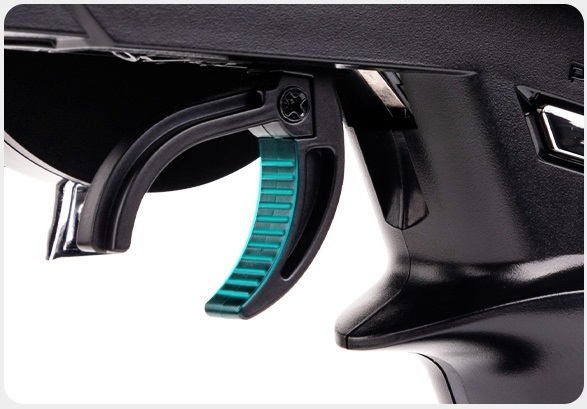

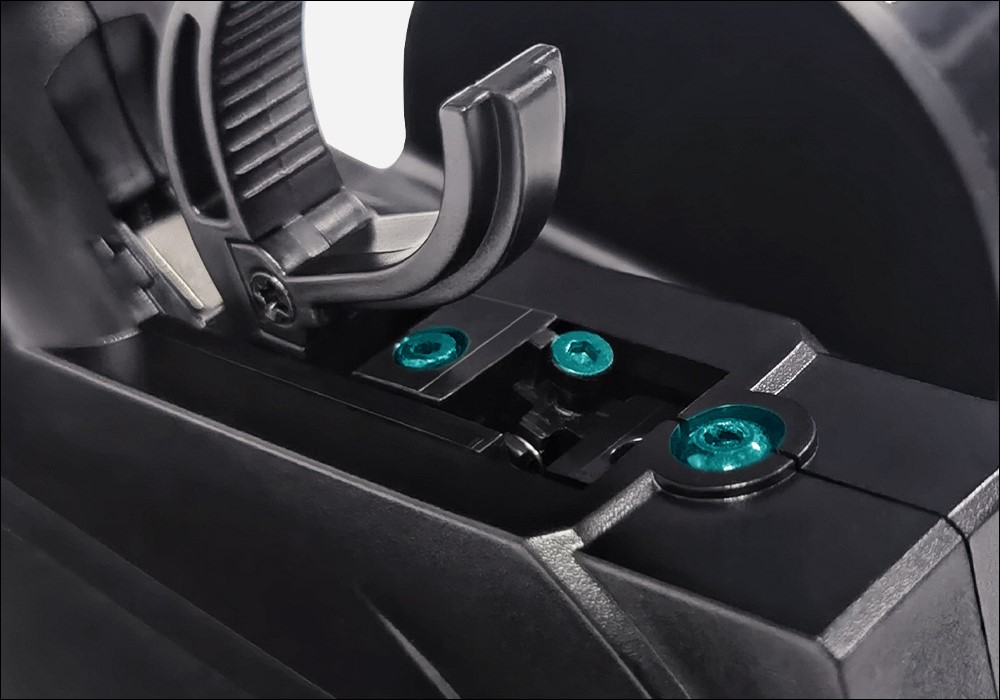

The trigger spring’s tension and trigger slide of RC8X can be adjusted.

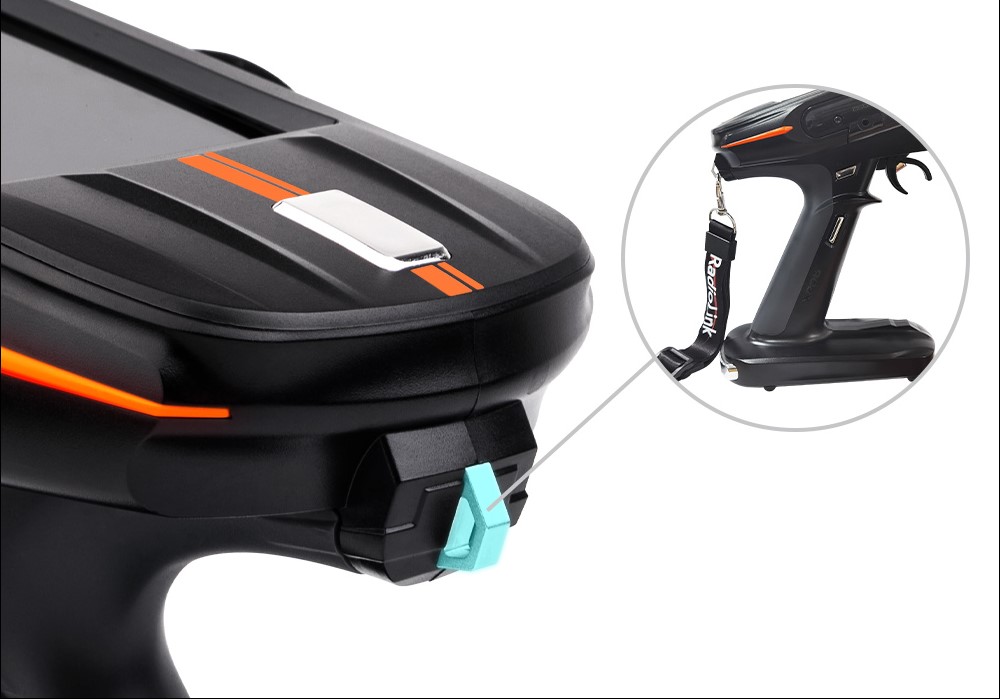

A lanyard (comes with RC8X) to make the suitable weight highly compatible with drivers' control habits, to make the long drive more pleasant.

Various switch styles for easy recognition and usage.

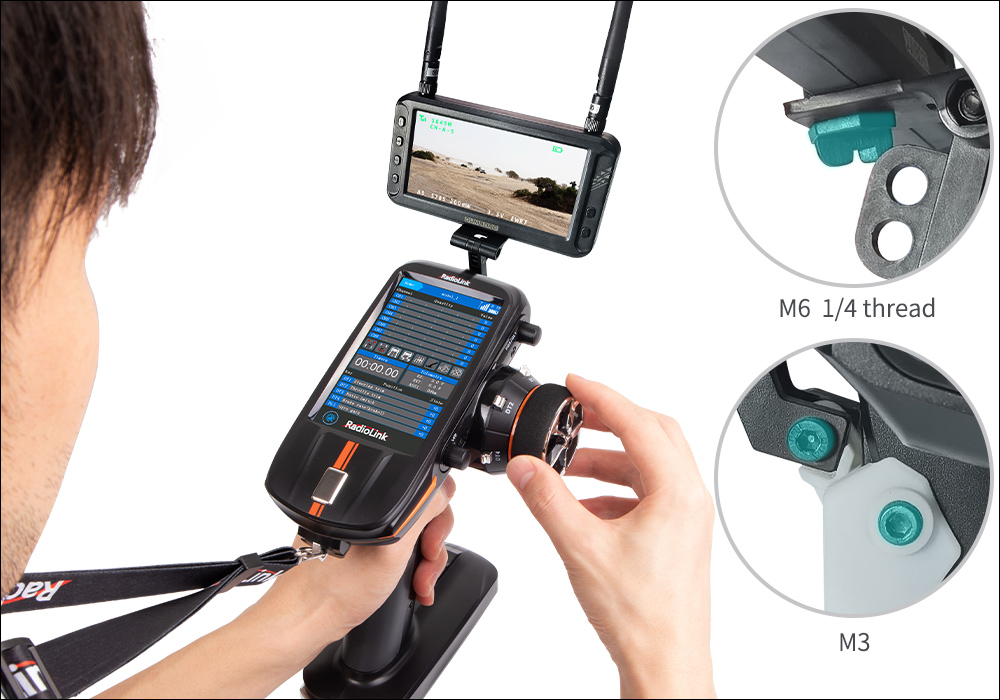

The FPV display holder design helps the drivers enjoy the FPV fun of driving(the FPV display holder is not included in the package; you can buy it from our official online shop).

Lefty Friendly: The left and right installation directions of the wheel section can be reversed.

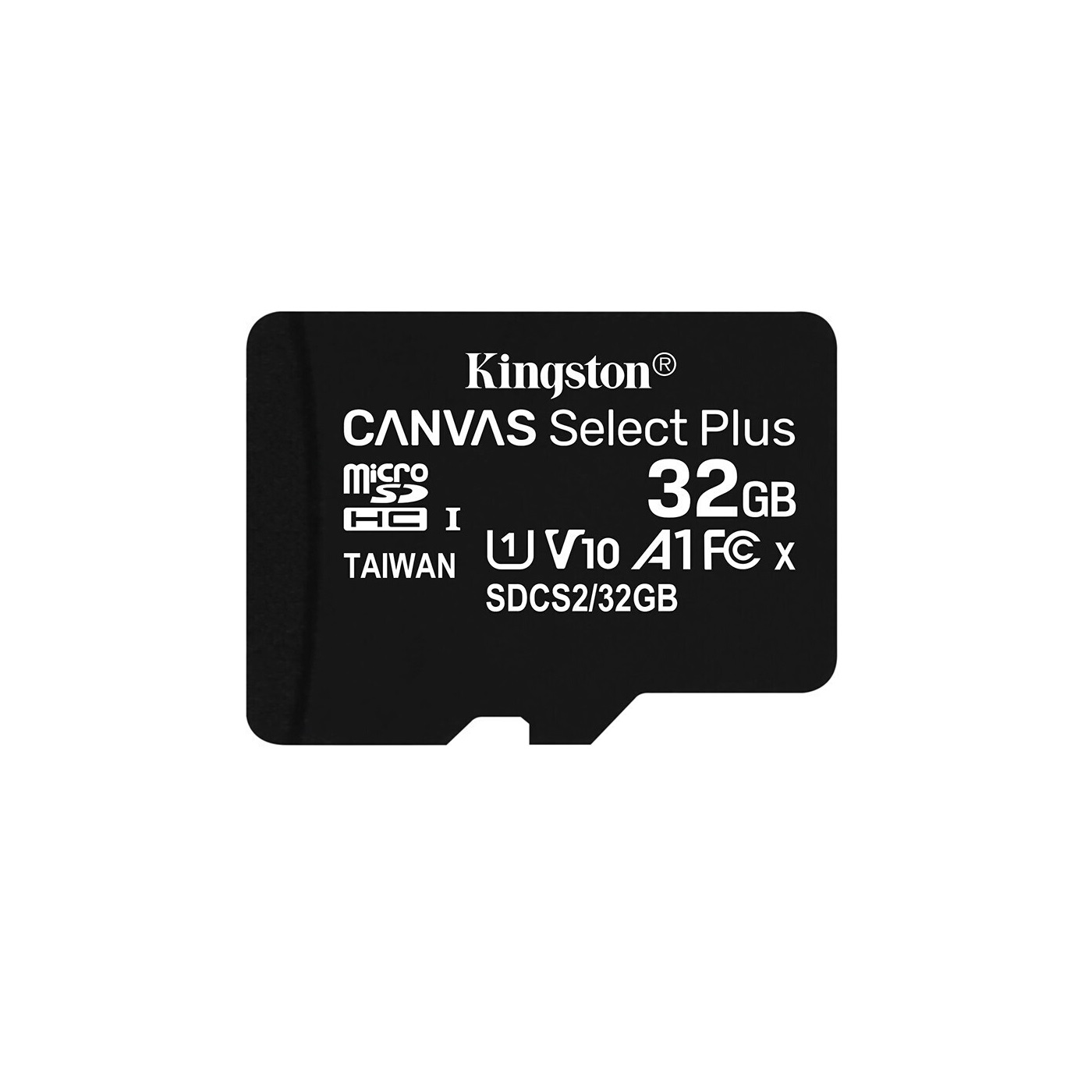

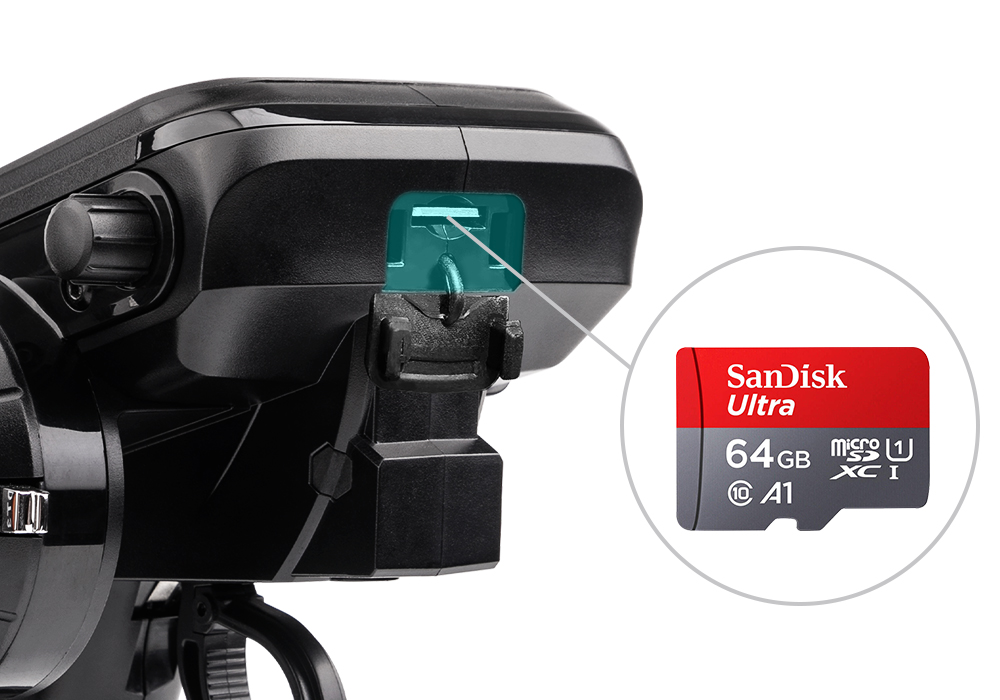

Up to 64GB Memory Expansion(a 32GB memory expansion is included in the package)

USB(Type-C) Online Upgrade

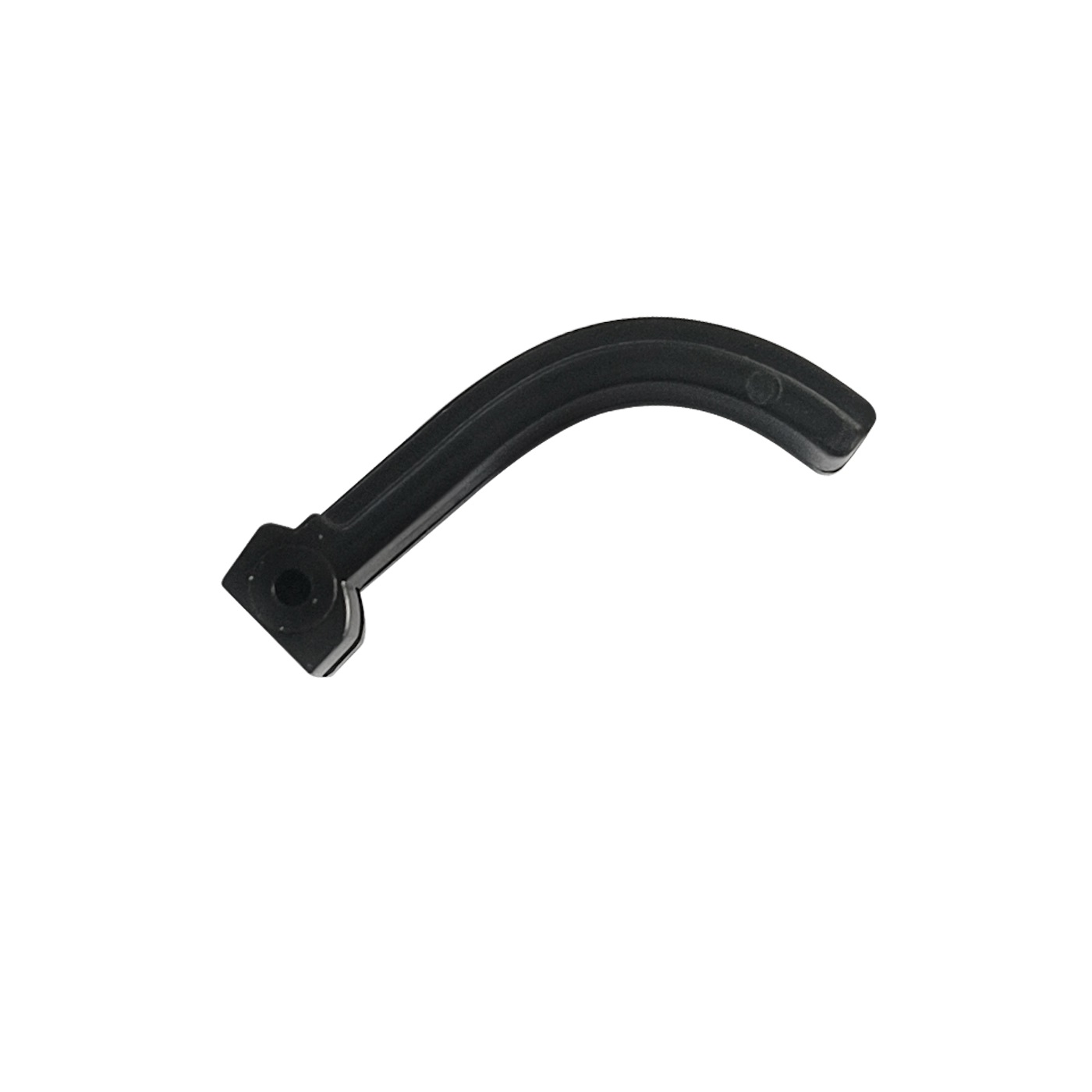

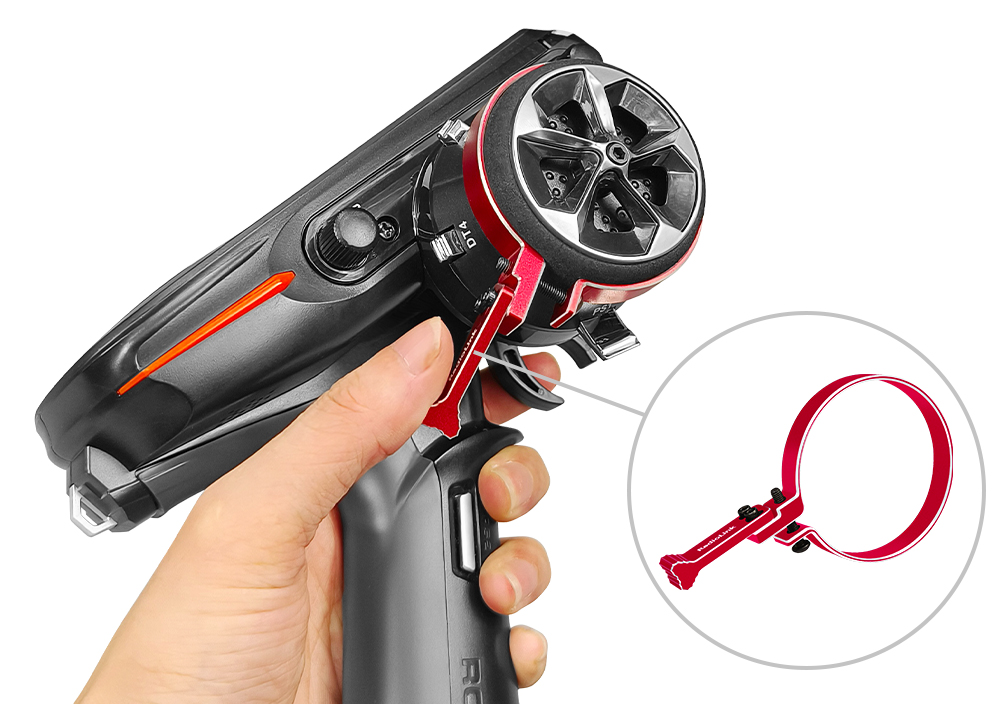

The thumb lever makes it possible to steer one-handed safely(the thumb lever is not included in the package; you can buy it from our official online shop).

Reverse Polarity Protection Circuit

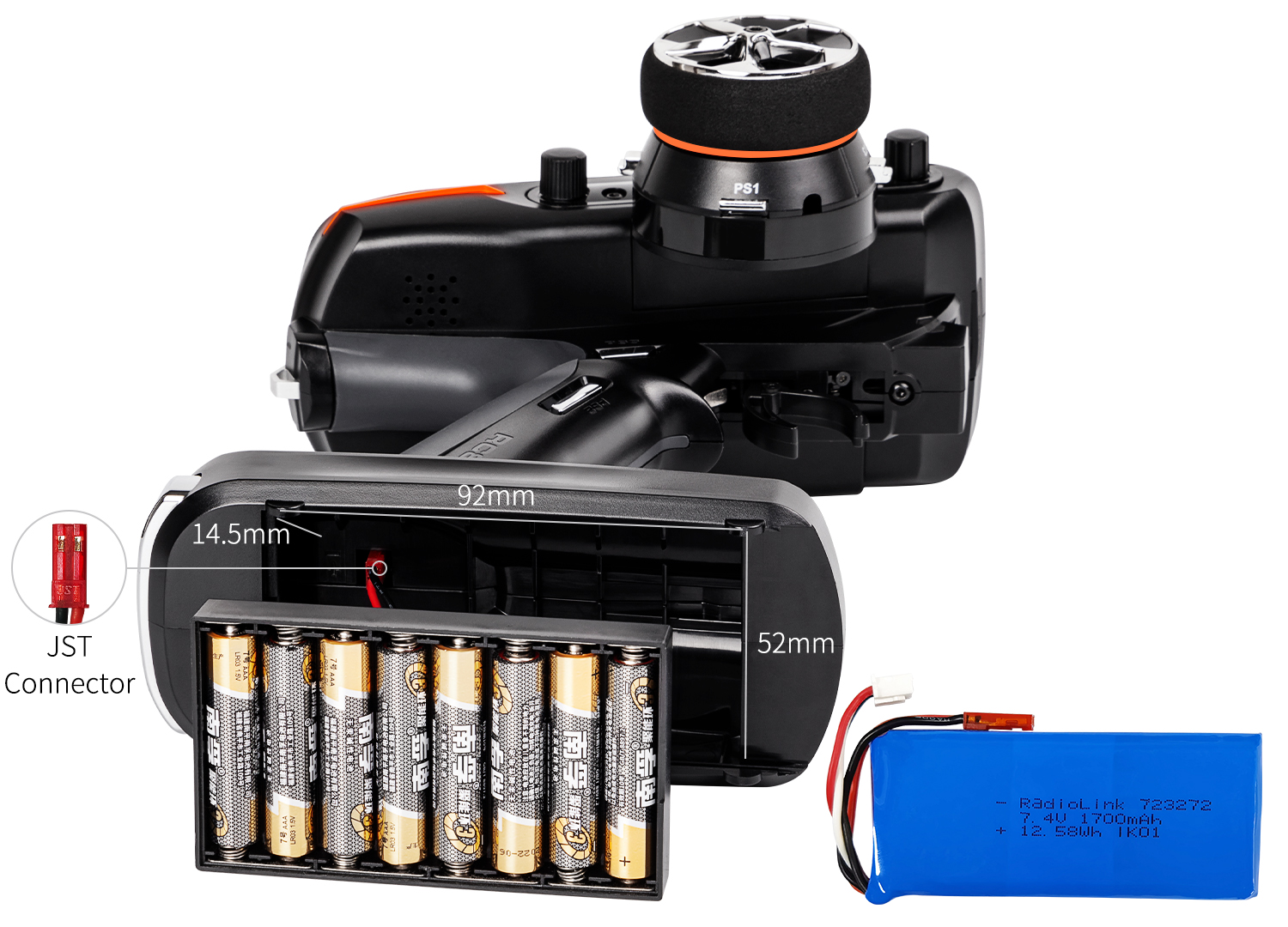

Multiple Power Supply Modes

RC8X is easily adapted for various battery layouts with wide operating voltage tolerance:

8 pieces of AAA batteries, a 2S-4S LiPo battery, a 6S Ni-MH battery, or powered by a computer or mobile power bank, connect via a Type-C cable.

Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.

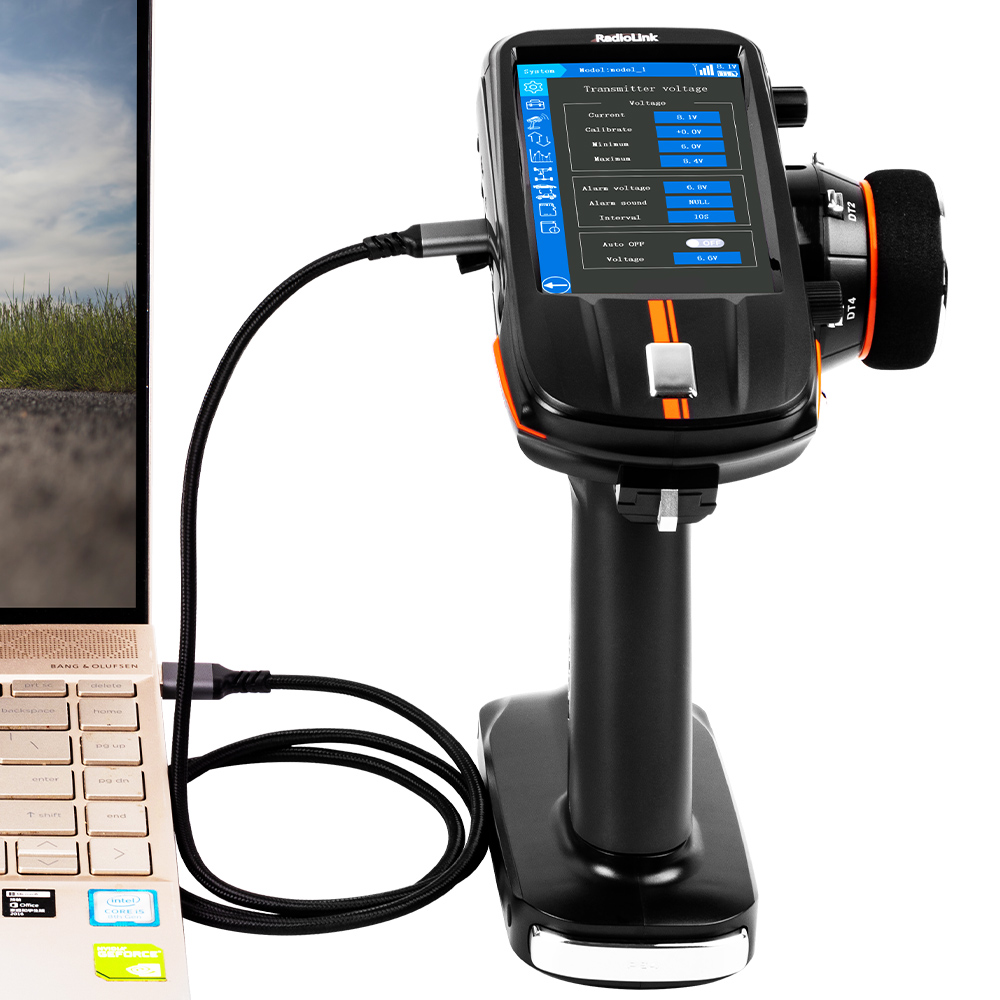

Powered by computer or mobile power bank

(connect via a Type-C cable)

Powered by 8 pieces of AAA batteries or a 2S-4S LiPo battery

Pay attention: If your RC8X is powered by a computer or mobile power bank via Type-C cable, please make sure the input voltage is not higher than 5.5V.

7.4V 1700mAh lithium battery customized according to the size of the RC8X battery compartment, the standby time is about 7 hours. The purchase link for the battery is

https://www.aliexpress.us/item/3256802047216624.html

Water Splash Proof (IPX4) for Receiver R8FG

A receiver R8FG will pack with RC8X.

The PCB board and pins of R8FG have the same waterproof treatment as the mobile phone, that is, nano-coating technology treatment, and the waterproof grade is IPX4.

IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC).

Wide Receivers Compatible

Compatible with Old Version Receivers

RC8X is packed with a receiver R8FG.

R8FG is an 8-channel receiver with gyro built-in, high-voltage servo support, and model voltage telemetry support.

R8FG also supports SBUS signal output that is compatible with the SBUS servo to make the connection more convenient and simpler.

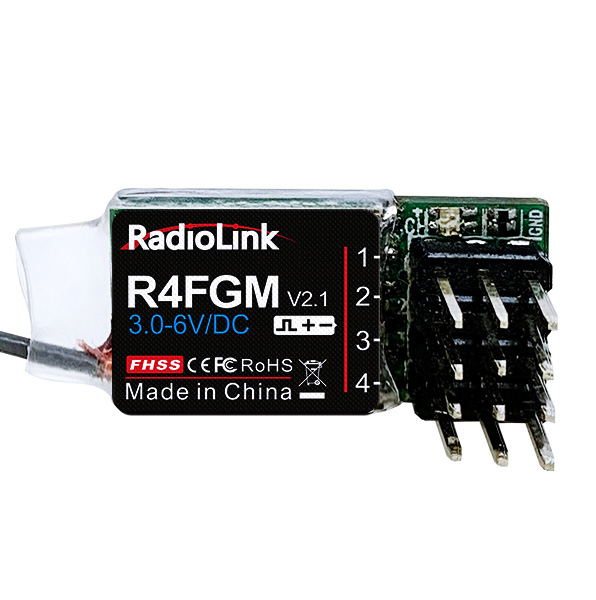

RC8X is also compatible with the 4 channels mini receivers R4FGM designed for Mini RC cars, the 6 channels receivers R6FG/R6F,

the 7 channels receivers R7FG, and the 8 channels long control distance receivers R8EF/R8FGH, 16 channels receiver R16F, 12 channels receiver R12F, which designed for RC boats.

RC8X Packing List

(For the actual packing list, please refer to the sales page of RC8X that you purchased,

or confirm it with the shop sales first.)

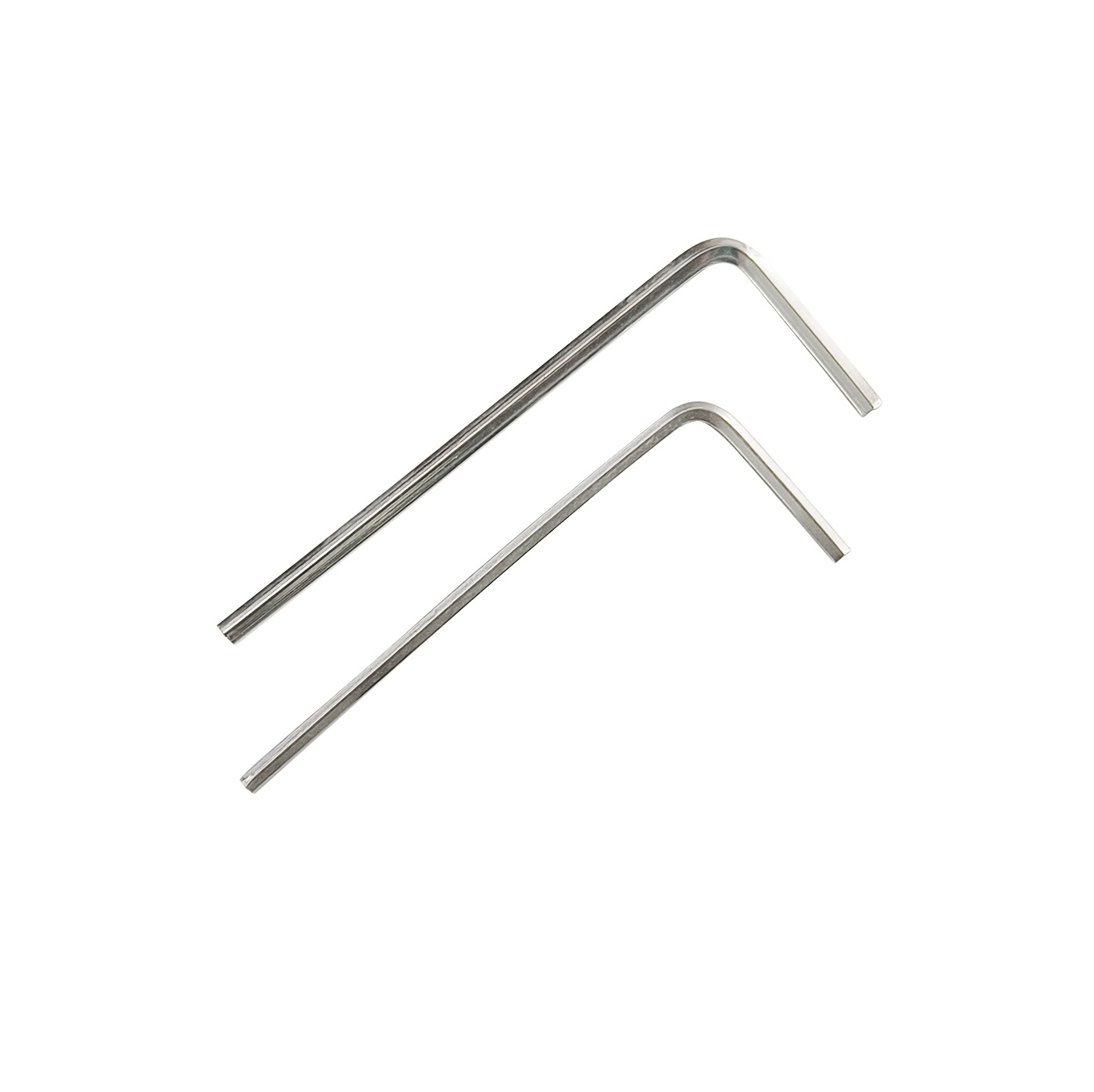

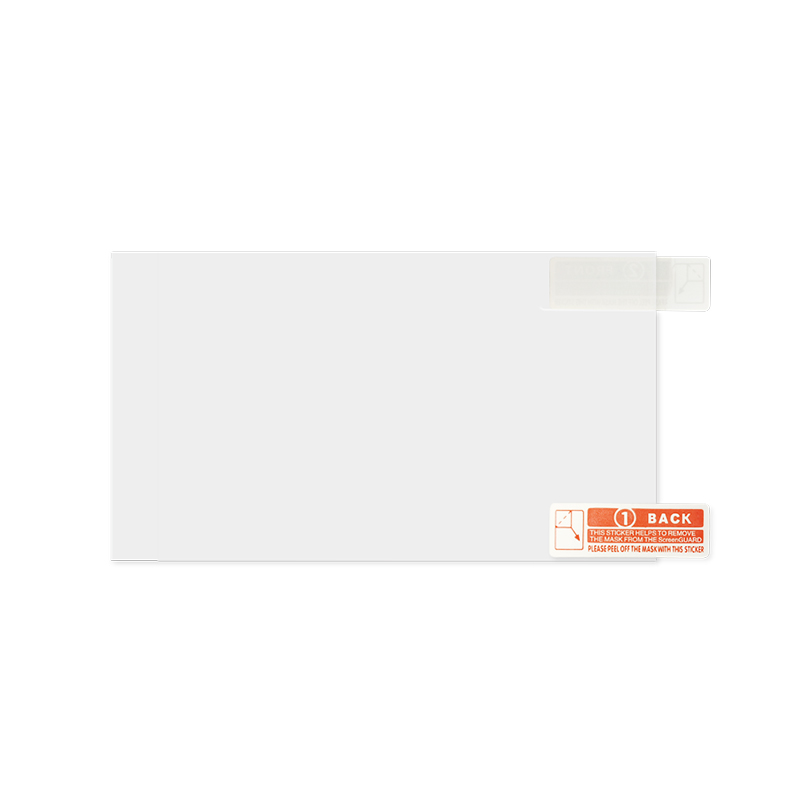

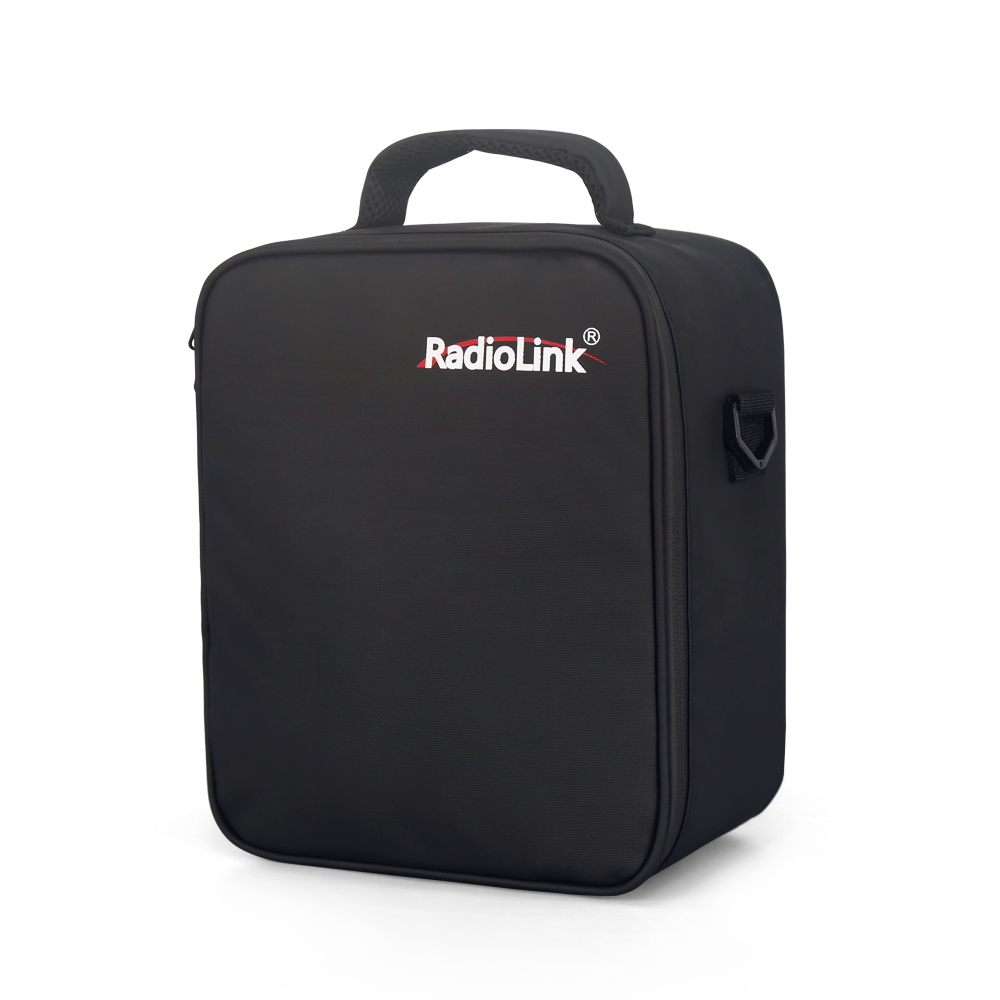

More Accessories * Choose What You Need
