Radiolink F108 FAQ

Q: F108 is connected to analog image transmission. There is image on the screen, but no OSD information. Why?

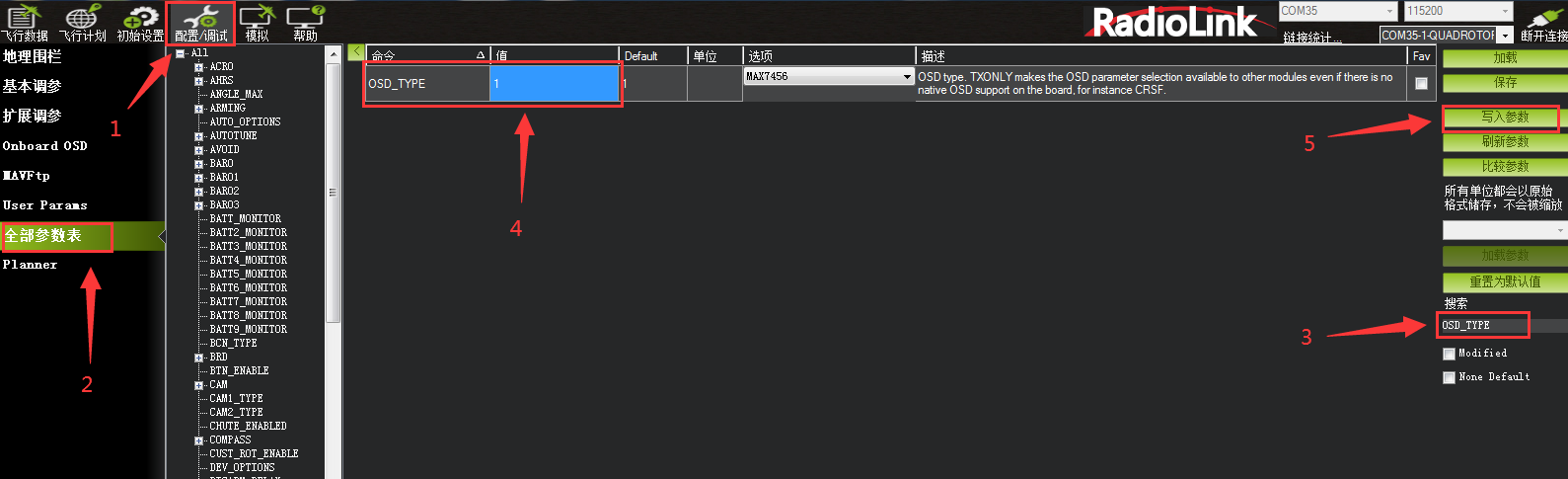

Please setting parameters in Mission Planner. Connect the flight controller of F108 to the Mission Planner. Click CONFIG--Full Parameter List. Search for OSD_TYPE. Set the value of OSD_TYPE to 1. And then click Write Params. The steps are shown below:
