Mini OSD for Image Transmission

Real-time Gesture Visualization Display

Chinese/English Parameter Setup Software

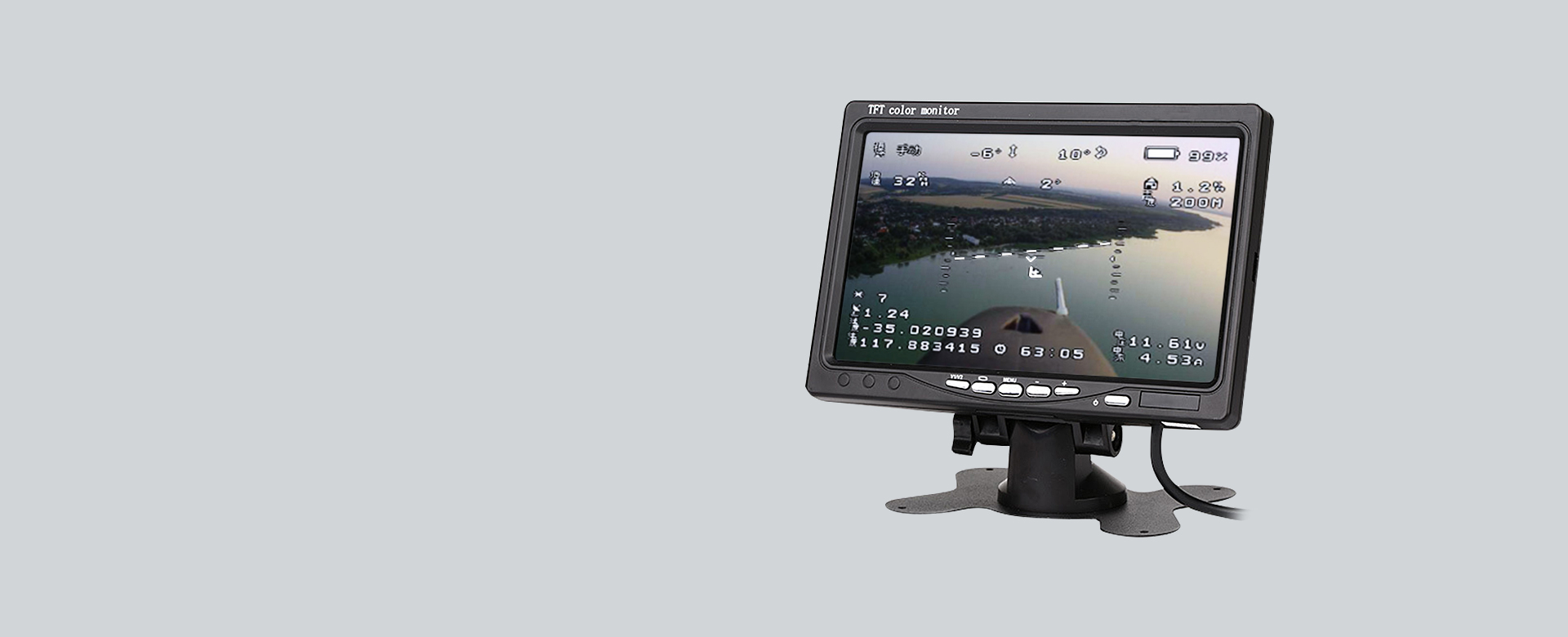

Real-time Gesture Visualization Display

RadioLink MINI OSD module works perfectly with PIXHAWK and MINI PIX, applicable to FPV flight. Real-time visualization display shows the position and direction of the aircraft. Pilots can directly get the status and coordinates anytime and enjoy better flight experience.

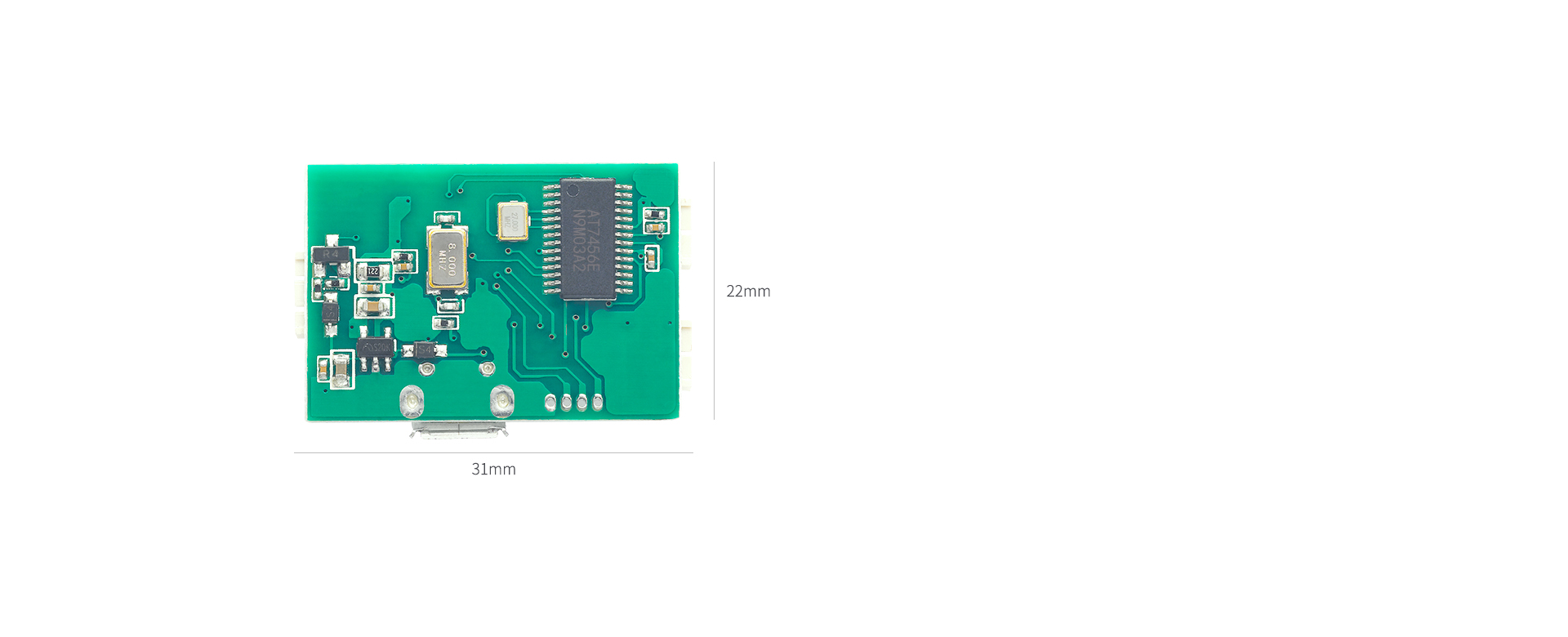

Smallest OSD module with Complete Functions

Extremely light weight of 3.5g(0.12oz), mini size of 16*16mm(0.63”0.63”), even 210 racing drone can easily carry.

Compatible with all flight controllers with MAVlink serial protocol, real-time display of flight information such as flight mode, distance, GPS stars, longitude and latitude, vertical speed, magnetic deviation, current time, battery voltage, current, wind speed, return route, exact route, vibration status, direction, etc. Rich parameter display and thoughtful setup make safer flight.

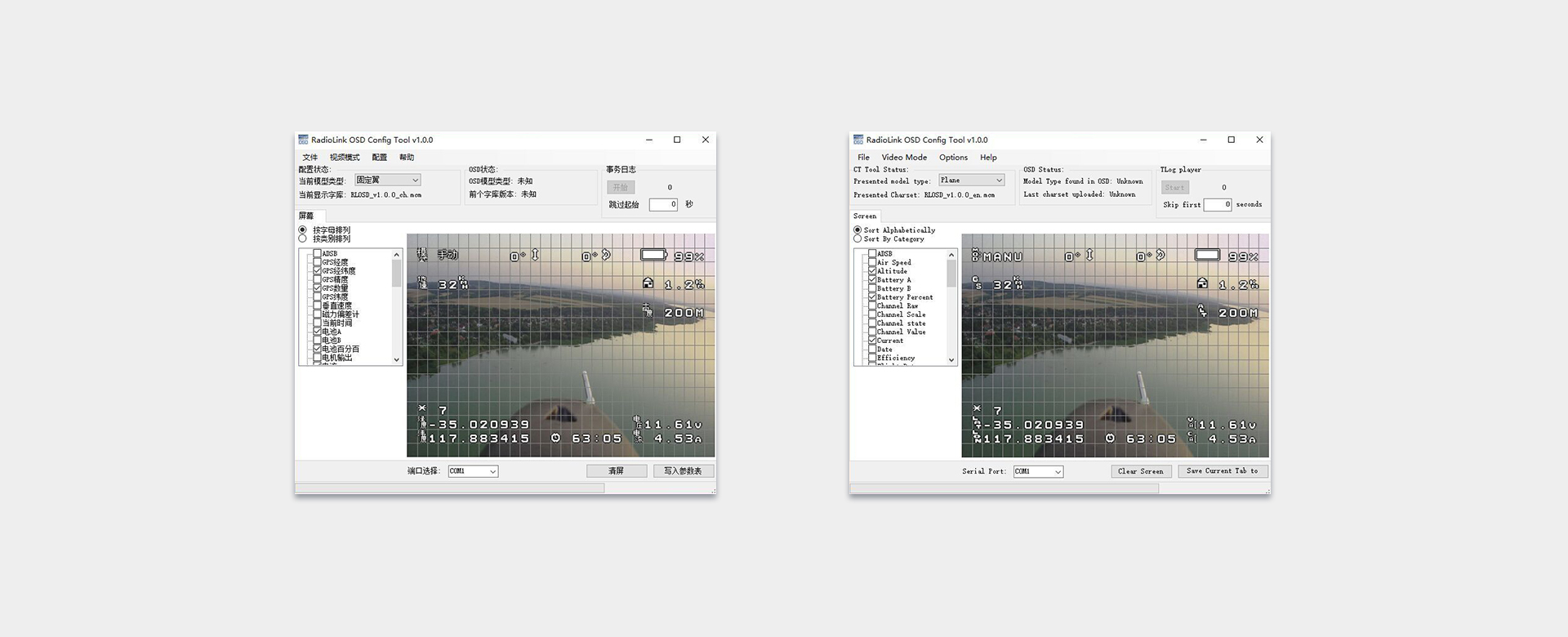

Param. Setup Software, USB Online Upgrade

English/ Chinese parameter setup software, users can personalize flight parameters display layout and font style.

Adding new functions by USB upgrade makes your OSD module always excellent.

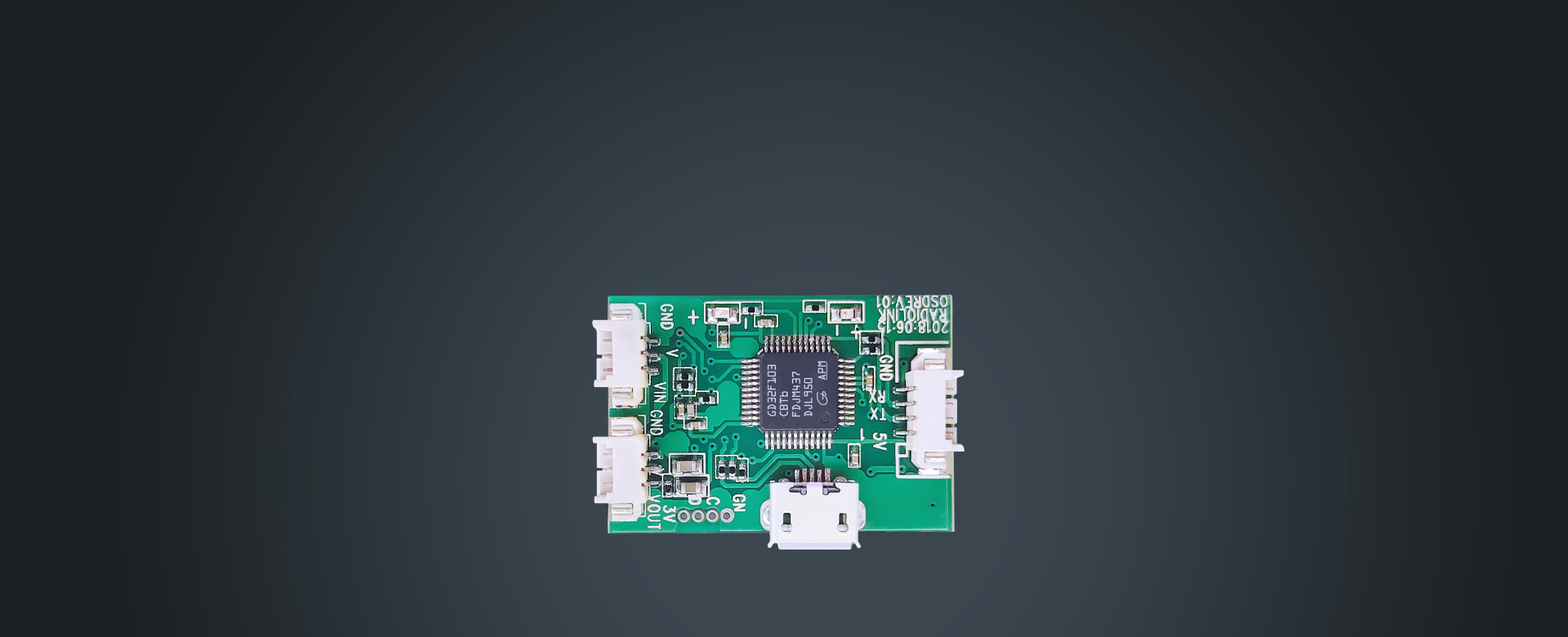

5V

TX

RX

GND

USB Port for

Parameters Setup

Output for Video Tx

5V Input

GND

Input for

Camera

5V Output

GND

Connection

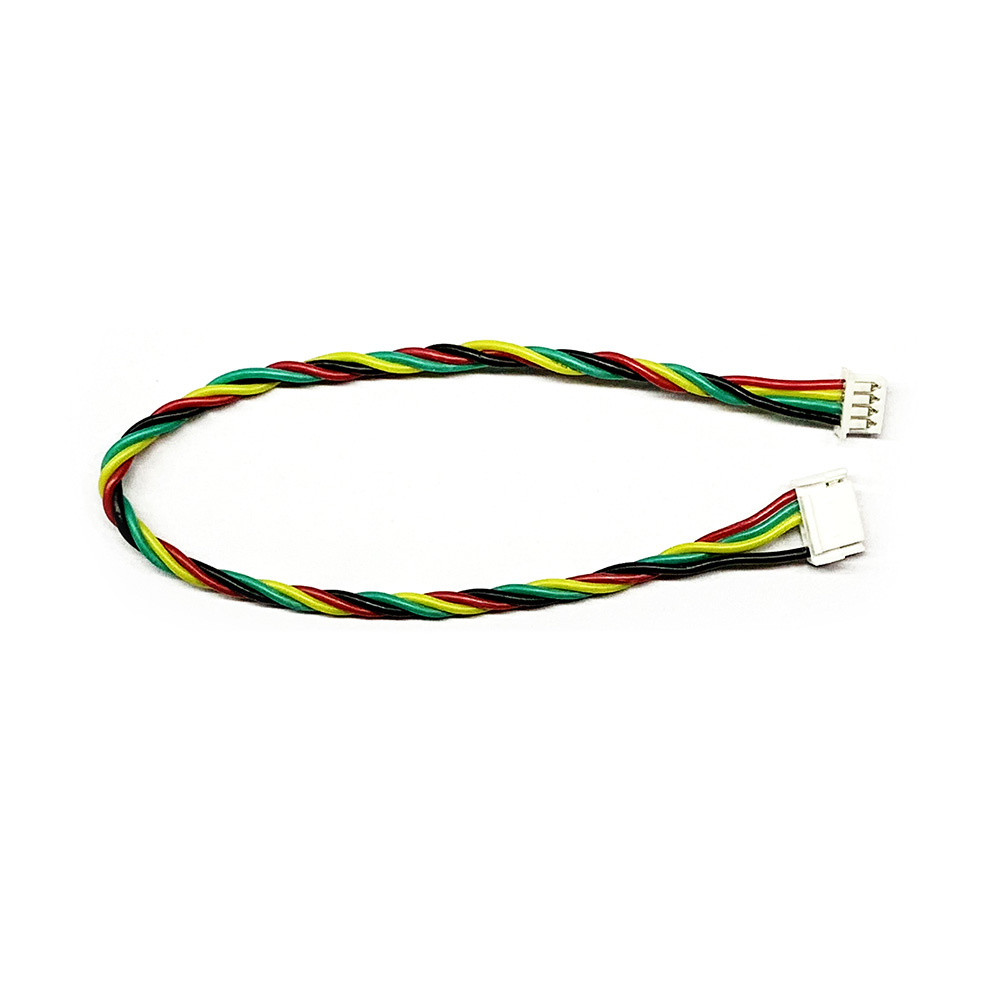

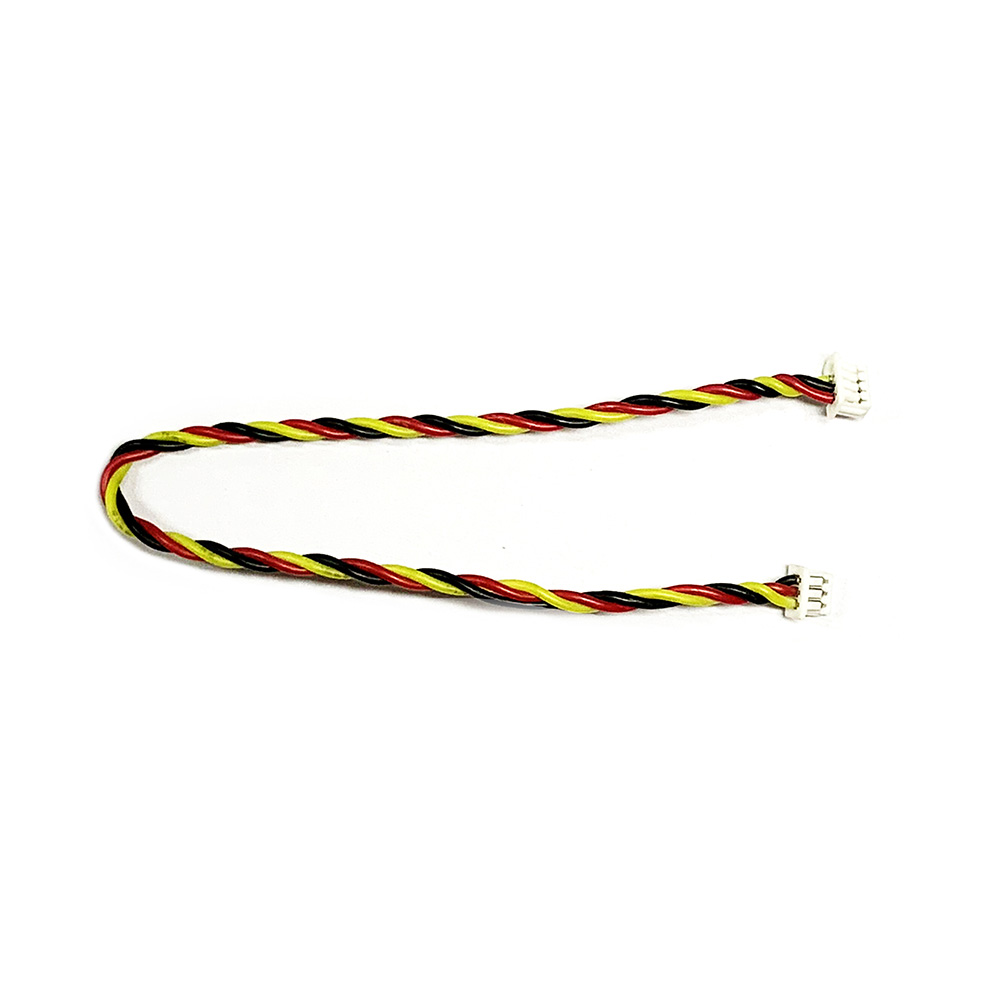

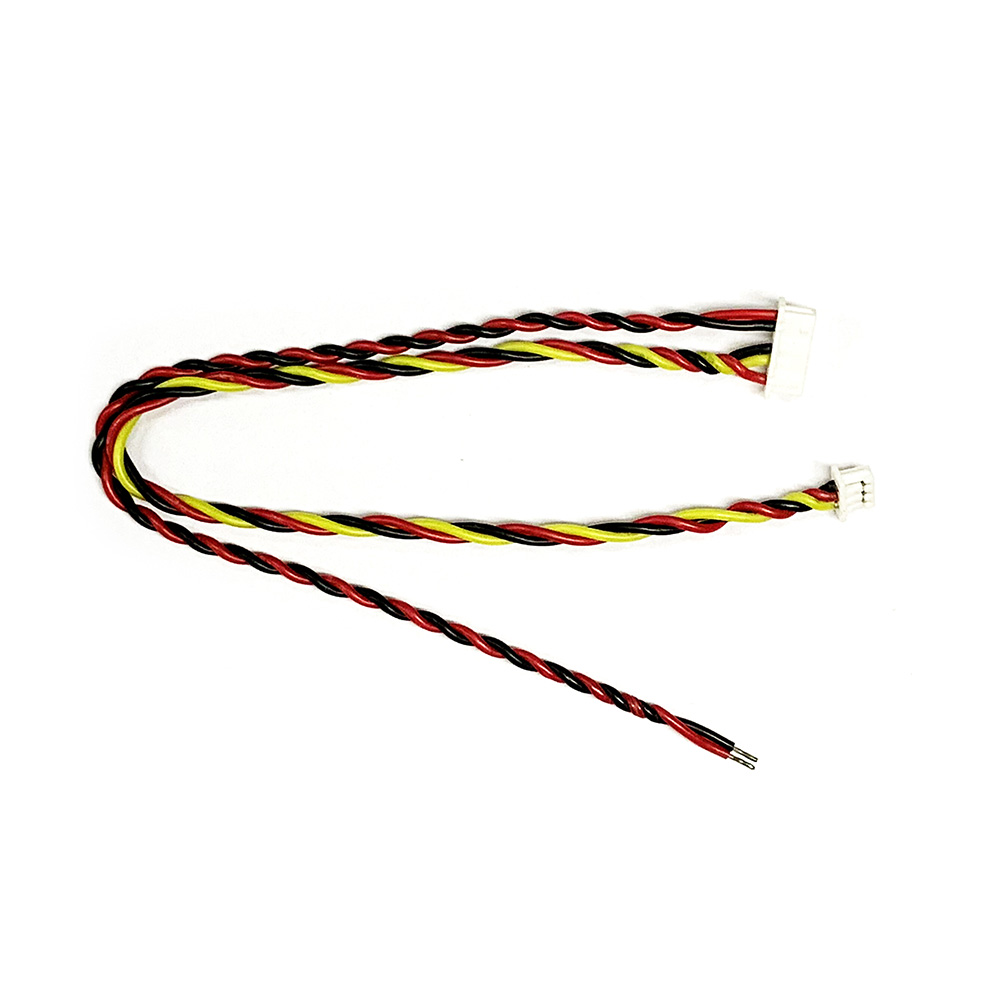

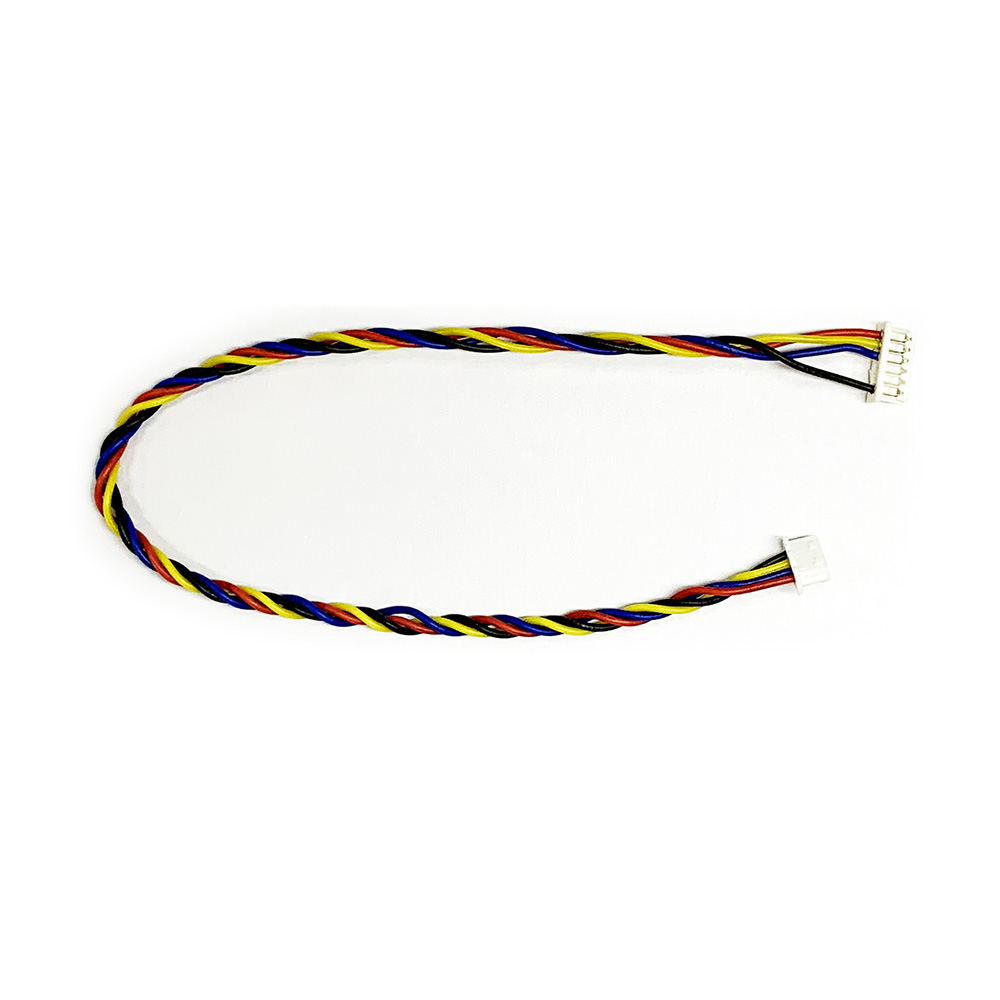

OSD Module Package List
