OSD Module FAQ

Q: What flight controllers is RadioLink OSD compatible with?

A: RadioLink OSD module is compatible with all flight controllers with Mavlink port such as PIXHAWK, MINIPIX, TURBOPIX, APM.

Q: What's the operating current and voltage of RadioLink OSD?

A: The input voltage is 4-6V while operating voltage is 5V and the operating current is 60mA@5V.

Q: The language of OSD parameter setup software has been set as English, but data displayed on FPV are still in error or is still in Chinese, why is that? Though the possibility of character library has been ruled out?

A: Download and upgrade the latest firmware osd.bin via below link

https://www.radiolink.com/osd_module_firmware

Then open the parameter  setup tool and reset the language as Chinese first, then English to solve the problem.

Q: Why the COM port cannot be identified after the OSD module is connected to the computer to setup parameter?

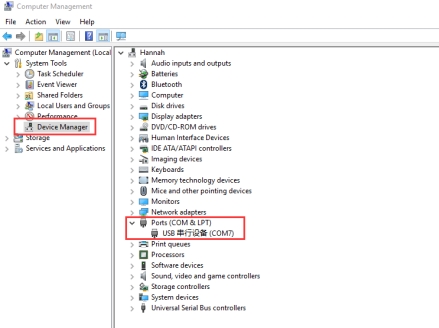

A: 1) Right click MY COMPUTER- PROPERTY-Device Manager to check what com port it is

   2) Open the OSD_Config in the file downloaded from

        https://www.radiolink.com/osd_module_firmware

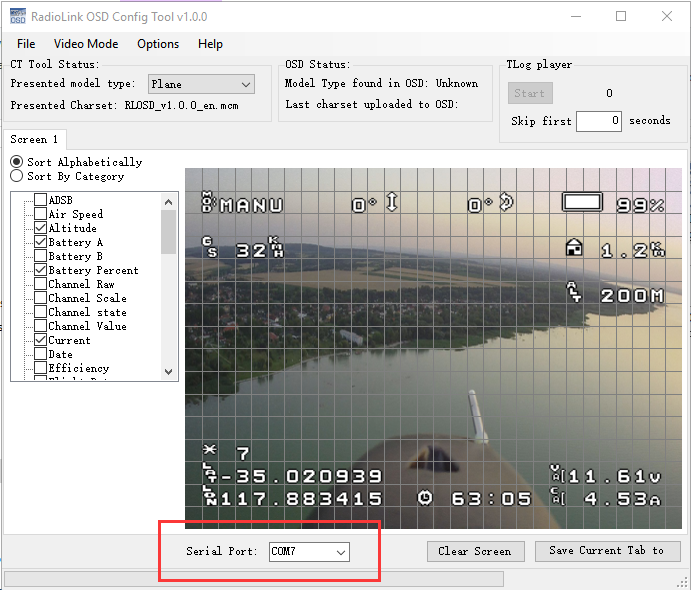

   3) Select the corresponding port at the left bottom of the software as below



If the problem remains, please download RadioLink Mission Planner via

http://www.radiolink.com.cn/firmware/MissionPlanner/MissionPlnaer-latest.exe and the driver will be automatically installed and the COM port can be identified.


Q: How to output the RSSI value to the OSD module so that it will be displayed?

A:

(1) Betaflight/F4

How to output RSSI value from receiver R8SM/R8FM to FPV when connect to Betaflight F4/F7

https://www.radiolink.com/newsinfo/504919.html

How to output RSSI value from receiver R12DS/R12DSM/R9DS/R6DS/R6DSM to FPV when connect to Betaflight&F4/F7

https://www.radiolink.com/newsinfo/477910.html

(2) Mission Planner/Mini Pix

How to output RSSI value from receiver R8SM/R8FM to FPV when connect to the Mini Pix/TURBO PiX/PIXHAWK

https://www.radiolink.com/newsinfo/504912.html

How to output RSSI value from receiver R12DS/R12DSM/R9DS/R6DS/R6DSM to FPV when connect to the Mini Pix/TURBO PiX/PIXHAWK

https://www.radiolink.com/newsinfo/477916.html

Q: Why is there no telemetry of voltage when OSD connected to PIXHAWK?

A: Check if the function of Battery Monitor of the flight controller in RadioLink Mission Planner (INITIAL SETUP-Optional Hardware) is activated as the voltage telemetry of OSD is powered by the standard galvanometer of flight controller. When the Battery Monitor function is activated, the telemetry will display only after the voltage calibration is done, following steps in RadioLink Mission Planner. The OSD module doesn't monitor battery itself while the power voltage is output by flight controller.
