A: Yes. You can play simulator with AT10/AT10II, but you need a dongle. You can search the dongle online. Here is a tutorial to show how to use AT10/AT10II to play simulator:

https://www.youtube.com/watch?v=0F2ARDpGUTs

And here is the simulator port of AT10/AT10II

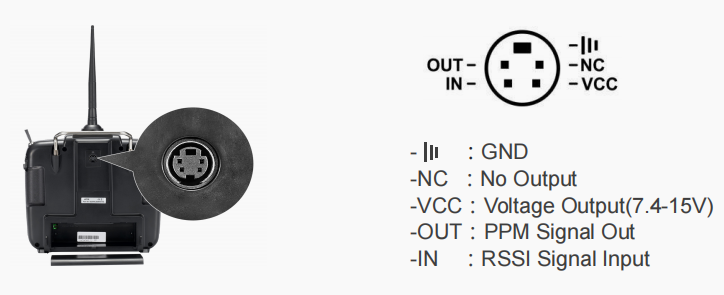

A: Please follow the below tutorial:

https://www.youtube.com/watch?v=WioS40UoIIk

The firmware can be downloaded via https://www.radiolink.com.cn/at10ii_firmwares

A: Please follow this tutorial: https://www.youtube.com/watch?v=DKTS3X66tCE

A: No. The firmware upgrade won't change any personalized parameters already set.

A: No.

A: Yes. You can bind them one by one. When binding one of the receiver, other receivers need to be powered off. After you have bound all the receivers to AT10/AT10II, power on all the receivers, the transmitter can control all the receivers at the same time.

A： Yes. Please follow the below tutorial: https://www.youtube.com/watch?v=9h-B1YfdI50

A: No.

A: Yes. Please follow the below tutorial: https://www.youtube.com/watch?v=UA1GjnnHnY0

A: Please follow the below tutorial: https://www.youtube.com/watch?v=RxgxNcwS-_M

A: RadioLink control system is not open sourced. So RadioLink transmitters are only compatible with RadioLink receivers. AT10/AT10II is compatible with RadioLink R12DS, R12DSE, R12DSM, R9DS, R6DS, R6DSM receivers.

Note: The default channel quantity of AT10/AT10II is 12 to work with the standard packed receiver R12DS. When working with the receivers R9DS, R6DS, R6DSM, the channel quantity of AT10/AT10II should be changed as 10CH.

Long press the Mode key to enter the BASIC MENU -> Rotate the scroll Dial to highlight the SYSTEM option and press Push to enter -> Select the CH-SELECT and change the number as required.

Here is a tutorial of it for your reference:

https://www.youtube.com/watch?v=gB4pu0t3F2s

A:1. TX LOW POWER! TX LOW POWER means the transmitter Battery voltage is lower than setting value. You can:

① press PUSH to enter PARAMETER menu. Choose TX ALARM by DIAL and lower the alarm voltage by PUSH button.

② if the low voltage alarm is setup depend on your battery already(e.g. your battery is a 2S, the TX-ALARM is setup 7.4V), but your transmitter still WARNING with TX LOW POWER, please change a battery with full power or just higher than 7.4V.

Here is a tutorial of TX LOW POWER warning for your reference:

https://www.youtube.com/watch?v=CkzCF_ARoUs

2.THR POSITION! means safety reminder for low throttle.

You can remove the reminder by

① pull down the throttle stick to the lowest position

② turning the DIAL button

If you do not need this hint, you can turn off this function by press Mode button to BASIC MENU, turn DIAL button to SYSTEM, press Push into SYSTEM menu, setup TH-DOWN: ON to OFF.

Here is a tutorial of THR POSITION warning for your reference:

https://www.youtube.com/watch?v=xxsMH5iKz1c

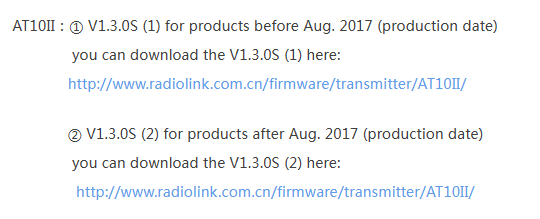

A: Yes. Here is the firmware download link: https://www.radiolink.com.cn/at10ii_firmwares

A: No.

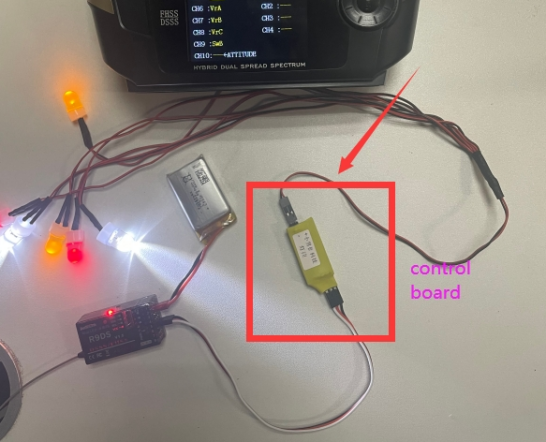

A： Set AUX-CH in the menu. Assign one channel to control the light. Make sure there is a control board with your light as below. If there is no control board, your light will be on all the time, but cannot be turned off with a switch.

A: No. RadioLink control system is not open sourced, so RadioLink transmitters are only compatible with RadioLink receivers.

A: If you want to reset setting, enter BASIC MENU- MODEL TYPE- RESET- EXECUTE. But please note the reset is only for this type. If you want to reset all settings, you need to reset every type. Here is a tutorial to show how to reset AT10/AT10II:

 https://www.youtube.com/watch?v=bU1bCPYQmqQ

A: Enter the basic menu- MODEL TYPE- choose boat type. Then go to the basic menu and advance menu to set up the function you want.

A: The USB port of AT10/AT10II is for upgrading the firmware and for copying the data to the computer. It cannot be used on the computer as a controller.

A: The screen is locked because of the LockScreen function.

Long press the PUSH button, and the screen will be unlocked. You can set the time from 1s to 255s. Enter the BASIC menu- PARAMETER- set LockScreen to OFF.

A: Follow the below steps.

1. Set channel 5/6 and PPM output on FPV goggles, and connect the transmitter with FPV goggles.
2. Enter the BASIC menu of AT9S Pro- AUX CH- assign VrA to channel 5, and VrB to channel 6.
3. Enter the BASIC menu of AT9S Pro- TRAINER- set the mode to TRIGGER and set MIX to ON(make sure to upgrade the firmware to the newest version)
4. Set channel 5 and 6 to NORM, and other channels to OFF.

A: Please follow the below tutorial to set PROG.MIX:

https://www.youtube.com/watch?v=DKTS3X66tCE

A: Yes. If the receiver needs to be installed in a car/boat with a full metal casing, it is recommended to use an IPEX to SAM with a sucker antenna. The antenna needs to be drawn out, because if the receiver antenna is enclosed in a metal shell, the metal material will weaken the signal of the receiver, thereby affecting the control distance.

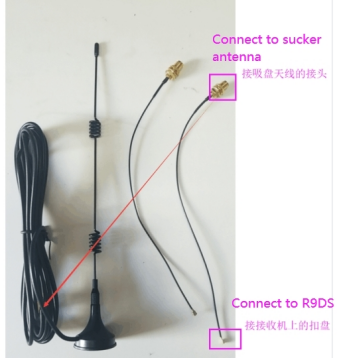

The antenna connector of R12DS/R9DS receiver is IPEX. Make sure the sucker antenna has the IPEX connector. Please refer to the picture below:

A: The update method of AT9S on Windows 11 is the same with that of Windows 10. So please refer to Windows 10 to update the firmware of AT9S Pro.

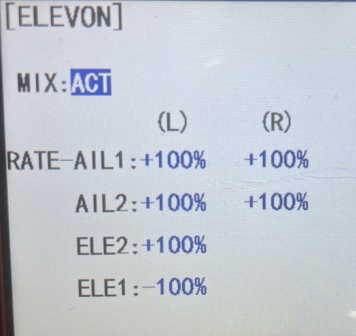

A: Yes. Please set ELEVON in the ADVANCE MENU of AT10/AT10II. Here is the detailed manual of AT10/AT10II: https://www.radiolink.com.cn/at10ii_manuals

Note: Do not set ELEVON when the aircraft is equipped with a flight controller, because the mixing in the transmitter will conflict with the mixing in the flight controller. Please refer to the manual of the to flight controller view the setting method.

A: No.

A: Channel 1-Channel 4 are controlled by joysticks by default. If you want to change to other switches, please follow the following steps:

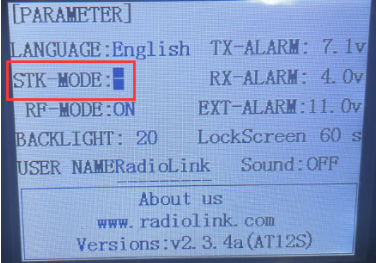

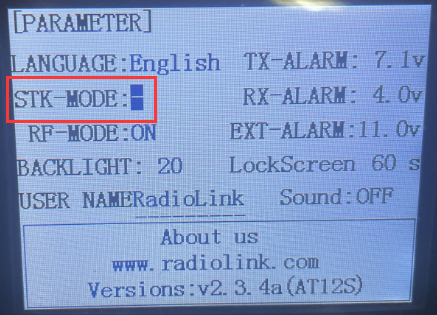

1. Enter the BASIC MENU--PARAMETER--STK-MODE. Set STK-MODE to -, as shown below:

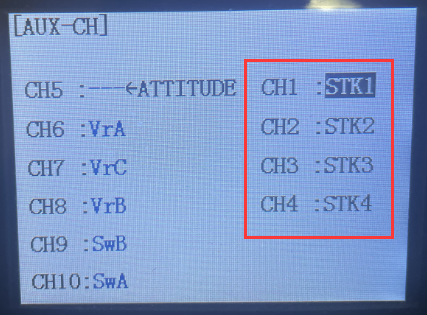

2. Enter the BASIC MENU--AUX-CH. You can assign the switches you want to control channel 1 to channel 4, as shown below:

Here is a tutorial to show how to customize the stick mode of AT10/AT10II:

https://www.youtube.com/watch?v=coEGaq7ewdY

A: No, this USB port is only used for the firmware update, not for battery charging. You could choose to use 8 * AA batteries (AT10/AT10II comes with an AA battery tray) or 2S~4S JST 2 pin connector lithium battery as the power supply battery of the transmitter. You need to use the charger to charge the battery.

A: AT10/AT10II supports up to 15 models storage.

A: Sorry, we don't have a list, cause there is a tremendous amount. AT10/AT10II transmitter can work with most 2.4GHz models. The come-with receiver R12DS support SBUS/PWM signal, and could operate with most of Racing drone, RC plane, fixed-wing, RC helicopter, multirotor drone, RC car, RC boat, RC robot in the market.

A: Could you please follow the below methods to troubleshoot the problem?

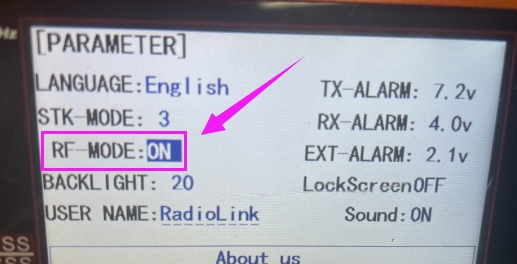

1. Check if you have turned on the RF-MODE on the transmitter.

2.Then please follow the binding tutorial to bind the receiver to the transmitter:

https://www.youtube.com/watch?v=c3K19QB2_xE

3.You can replace another receiver to have a try to confirm if the problem comes from the receiver or the transmitter.

4. If the problem still exists, please send a binding tutorial to after_service@radiolink.com.cn to confirm the problem.

A: There are two methods to use the trainer function:

1. You can use the trainer cable to connect the two transmitters. But please prepare a trainer cable. Here are the tutorials for your reference:

https://www.youtube.com/watch?v=vgJEzeyxOIY

And here is the simulator port of AT10/AT10II:

2. You can also use wireless trainer cable. We sell the wireless trainer cable in the video. You need to make sure the other transmitter has the trainer function and its receiver supports PPM signal output, then you can use our wireless trainer cable. Here is the tutorial for your reference:

https://www.youtube.com/watch?v=MHh6qlrhjG4

A: If the screen is blank after you update the firmware, please click the below link to solve the problem: https://www.radiolink.com/newsinfo/477826.html

Please choose the suitable firmware and download it from this website to solve the white screen problem. After the screen problem is solved, you can install the suitable or latest firmware you want.

A: When using different receivers, you need to set CH-SELECT on AT10/AT10II. Select 10CH for R9DS/R6DS/R6DSM receiver and select 12CH for R12DS/R12DSE/R12DSM receiver. If the selection is wrong, the servos will shake violently and cannot work well.

Here is a tutorial of it for your reference:

https://www.youtube.com/watch?v=gB4pu0t3F2s

A:

1. Please test RSSI. Here is the tutorial of RSSI testing: https://www.radiolink.com/newsinfo/477894.html
2. Check the antenna condition of the transmitter and the receiver.
3. Make sure the antenna is not near the metal or carbon fiber materials.
4. Please replace another receiver to have a try. It can help to confirm if the problem comes from the receiver or the transmitter.

A: 1. R12DS has different working modes, including PWM and SBUS/PWM working mode. Red LED indicates PWM signal output, while blue/purple LED indicates SBUS&PWM signal output. If your flight controller supports SBUS working mode, please make sure the LED of R9DS is in blue/purple. Short press the ID SET switch twice within 1 second, the signal will be changed from PWM to SBUS.

2. Please check the setting of the CH_SELECT on the transmitter. Enter SYSTEM menu and select 12CH for R12DS.

A: The PWM output signal frequency is 65Hz and cannot be modified.

A: Please follow this tutorial: https://www.youtube.com/watch?v=WWtxwOooopY

A: Please follow this tutorial: https://www.youtube.com/watch?v=1WzMmD5HNJQ

A: Please follow this tutorial: https://www.youtube.com/watch?v=DQ0lTE-XTFc

A: Please follow this tutorial: https://www.youtube.com/watch?v=glbSz2RRawo

A: Please follow this tutorial: https://www.youtube.com/watch?v=FK5pwPCWe_s

A: Please follow this tutorial: https://www.youtube.com/watch?v=a8tUnwu4mOw

A: Please follow this tutorial: https://www.youtube.com/watch?v=gB4pu0t3F2s

A: Please follow this tutorial: https://www.youtube.com/watch?v=ehNG1Tmzyrg

A: Please follow this tutorial: https://www.youtube.com/watch?v=jr7ad-_MVoI

A: Please follow this tutorial: https://www.youtube.com/watch?v=0cyL4lGGxl0

A: The standard packed receiver with AT10II is R12DS, which is a 12-channel receiver that supports SBUS and PWM signals synchronously with 2.4G DSSS&FHSS spread spectrum technology.

Besides R12DS, there are also other compatible receivers with different channel quantities available.

R6DS- 6 channels(PWM signal output); 10 channels (SBUS/PPM signal output)

R9DS- 9 channels(PWM signal output); 10 channels (SBUS signal output)

Mini receivers: R6DSM- 10 channels (SBUS/PPM signal output)

R12DSM- 12 channels (SBUS/PPM signal output)

Note

The default channel quantity of AT10II is 12 to work with the standard packed receiver R12DS. When working with the non 12-channel receivers (R6DS,R6DSM,R9DS), the channel quantity of AT10II should be changed as 10.

Long press the Mode key to enter the BASIC MENU -> Rotate the scroll Dial to highlight the SYSTEM option and press Push to enter -> Select the CH-SELECT and change the Number as required.

* All RadioLink transmitters are not open sourced and can only bind to receivers developed by RadioLink.

A: Please follow this tutorial: https://www.youtube.com/watch?v=GM8kkhX2Rqw

A: Please follow this tutorial: https://www.youtube.com/watch?v=8b0RTYwO8Yw

A: Please follow this tutorial: https://www.youtube.com/watch?v=qCnZlniQ79I

A: Please follow this tutorial: https://www.youtube.com/watch?v=AfnaRCEnIMA

A: Please follow this tutorial: https://www.youtube.com/watch?v=23Ml4th_R74

A: Please follow this tutorial: https://www.youtube.com/watch?v=3AjPGLGFv08

A: Please follow this tutorial: https://www.youtube.com/watch?v=5TQQYLwK3Xs

A: Please follow this tutorial: https://www.youtube.com/watch?v=nquuvM3hmtw

A: The secondary transmitter's model doesn't need to be the same as that of the primary transmitter. E.G. AT9, AT9S, AT9S Pro, and AT10II can use the trainer function.

A: For the trainer function, it needs to connected by a specialized trainer cable, e.g. Radiolink wireless trainer cable(ASIN: B089K4DJRG).

A: When adjusting L or H, need to know which switch control is set for each channel first. For example: if the channel 5 is controlled by a VRB switch, it will need to toggle the VRB switch to adjust the value setting to the L position.

A: PRM-01 is capable of returning model battery voltage in real time.

A: No, SBUS signal can only be tested via oscilloscope or flight controller.

A: The factory default model of AT10II/AT9S Pro is helicopter. CH3 and CH6 is combined in helicopter mode. If the model type is not helicopter, please kindly check if the mix control is turned on.

A: The default attitude mode of AT10II/AT9S Pro is CH5 for MULTIROTOR. While connecting DJI flight controller, if the receiver output signal is SBUS, change CH7 for ATTITUDE, if receiver output is PWM, choose CH5 for ATTITUDE.

A:

1) Calibrate the joystick and restore the factory settings (please change the model before restoration to prevent the parameters in the original model from being reset)

2) If after centering the joystick, there are still 1, 2, 3 servo range, and the trim and END POINT have not been set, please flash the latest firmware.

3)Check whether has changed the joystick with new potentiometer, if has changed the joystick without flashing firmware, please flash the latest firmware.

4)If you still can't get it to work well, then please feel free to let us know. We will help you timely.

A: DJI flight controller needs to be calibrated via Mission Planner when change transmitters of different brands.

A:

1) Check whether the power supply is normal, whether there is insufficient power supply or the battery is inserted backwards.

2) If it can't be turned on after flashing the firmware, please follow the correct steps to flash the firmware again

3)If the power supply is normal and firmware hasn't been flashed, for domestic customers, please return it to the factory for repair; for the foreign customers, please check whether if there is power switch problem. Steps as below:

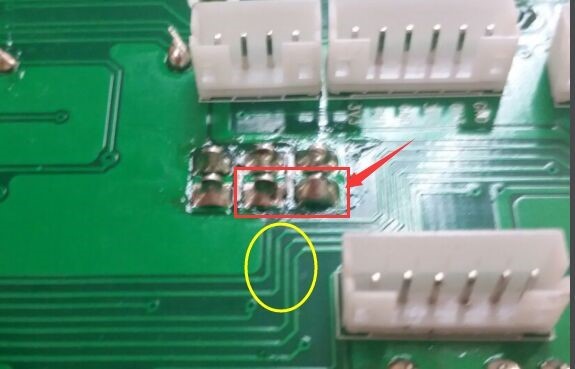

Short-circuit the two pins in the red box (avoid to connecting the wire in the yellow box), if the transmitter can be turned on after short-circuiting, it means there is a problem on power switch. If you still can't get it to work well, then please feel free to let us know. We will help you timely.

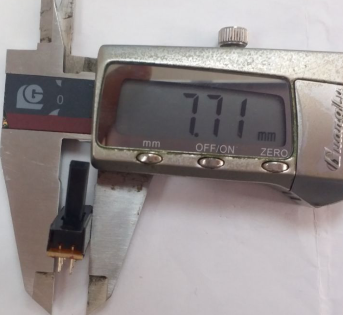

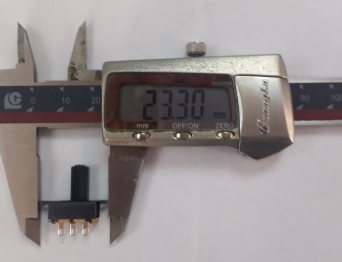

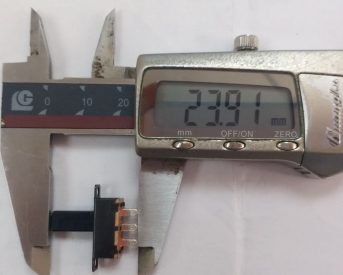

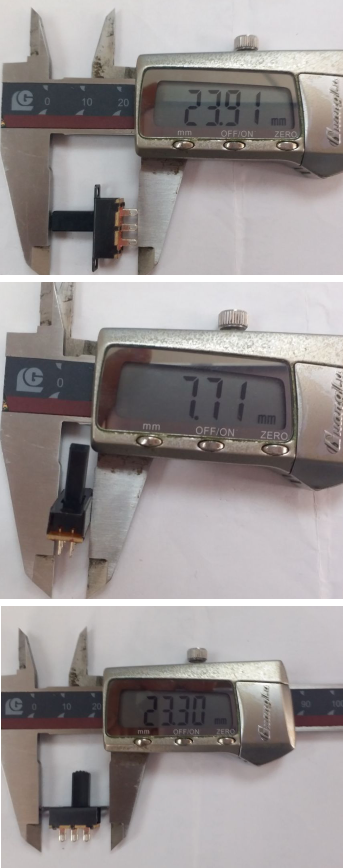

Power switch parameter：Item number SS-22F32
